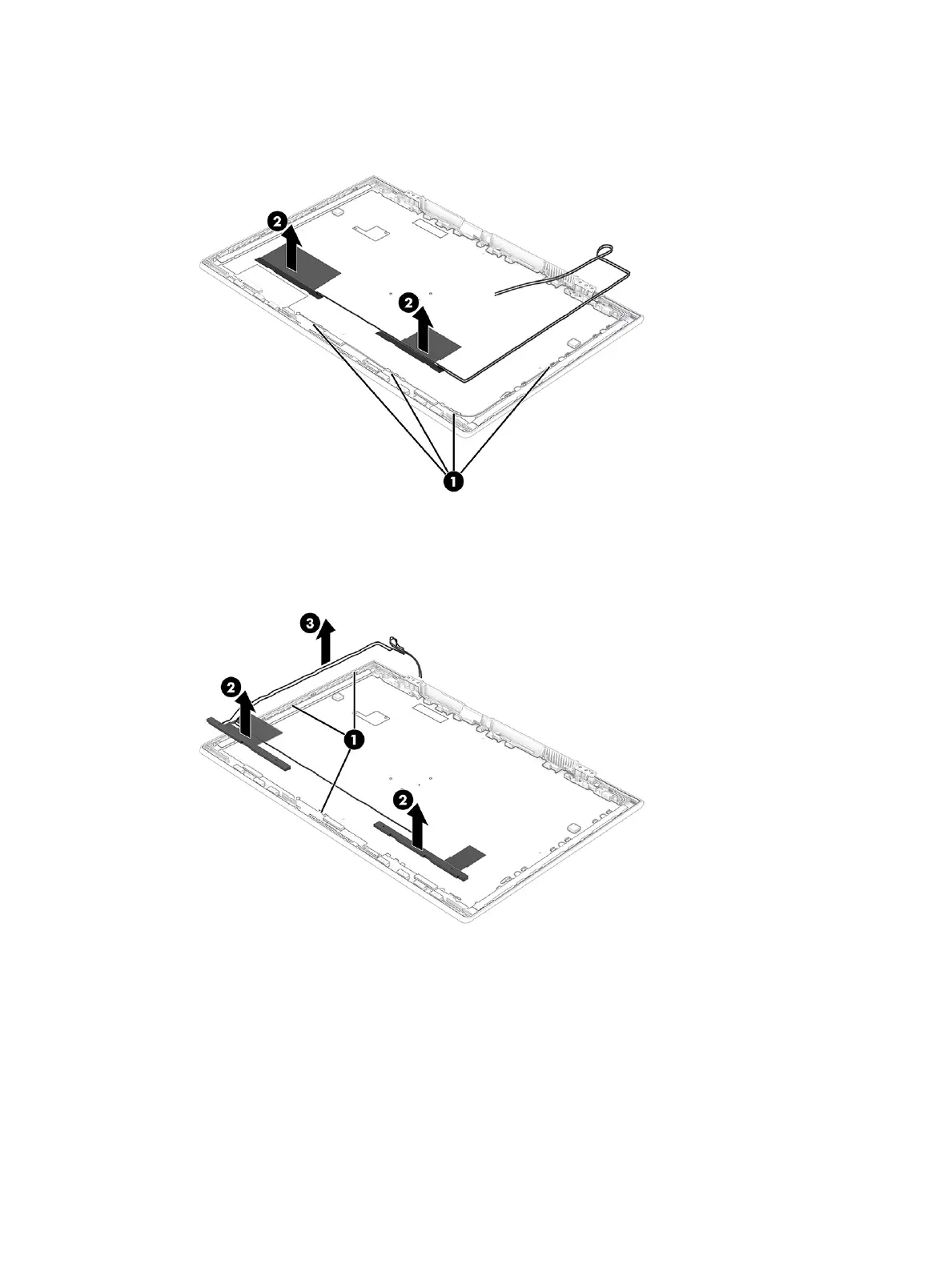

18. If you need to remove the WLAN antenna cables, remove the cables from the clips at the bottom and
side of the cover (1), and then peel the antennas o the inside of the display back cover (2).
19. If you need to remove the WWAN antenna cables, remove the cables from the clips along the edges of
the display back cover (1), peel the antennas o the inside of the cover (2), and then remove the
antennas and cables (3).
66 Chapter 6 Removal and replacement procedures for authorized service provider parts
