15.

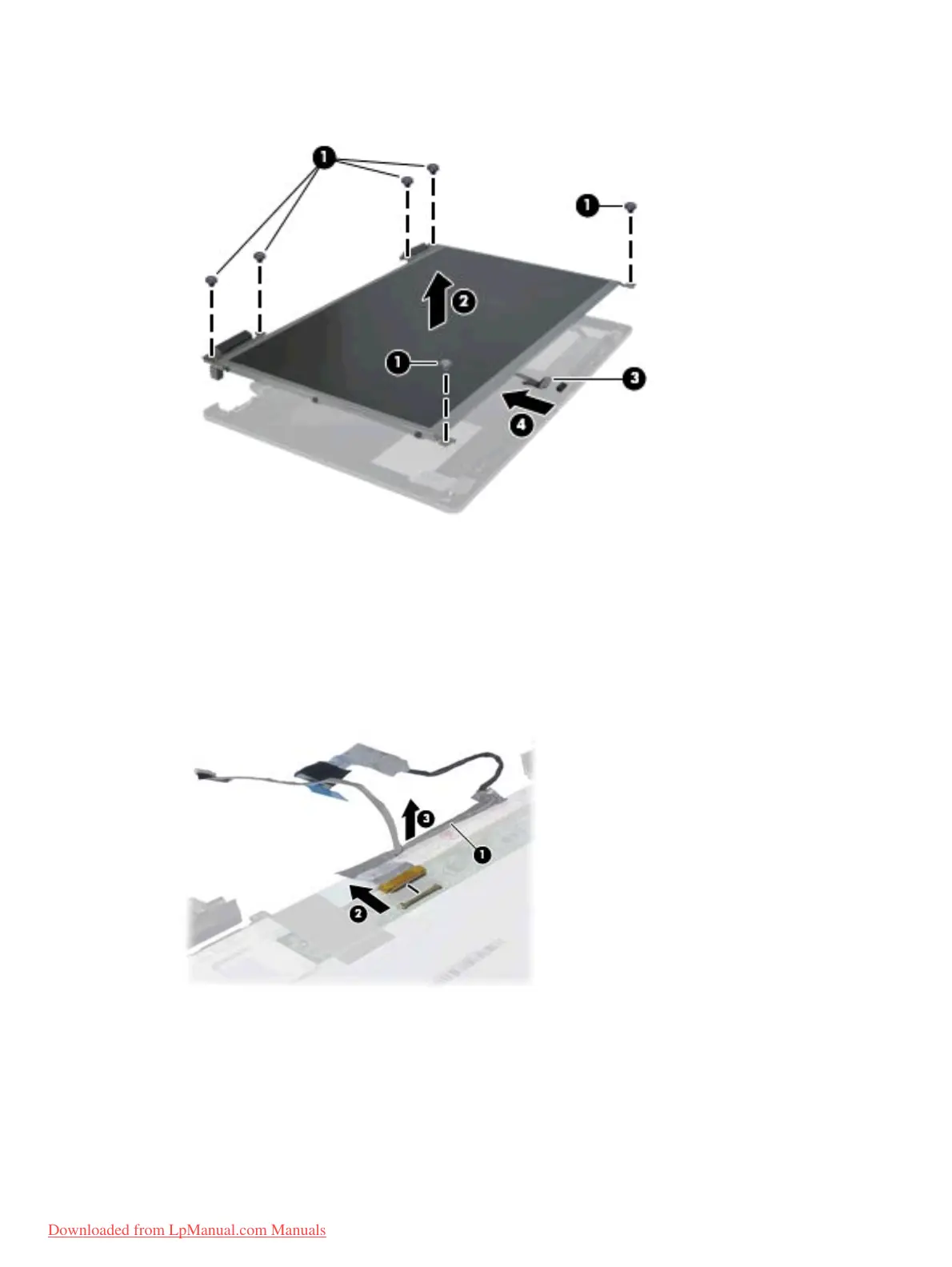

Remove the display panel (4).
16.
If it is necessary to remove the display panel cable, remove the tape (1) covering the display
panel cable along with the cable from the back of the display. Disconnect the video board cable
(2). Also, it is necessary to disconnect the webcam/microphone cable and tape that secures this
cable to the display, and then lift the cable and tape away from the display panel (3). The display
panel cable is in the Display Panel Cable Kit, spare part number 639471-001 (with webcam) or
639472–001 (without webcam).
17. If it is necessary to replace the display hinges, remove the six Phillips PM2.5×3.0 screws (1) that
secure each display hinge to the display panel.
94 Chapter 4 Removal and replacement procedures
