6.

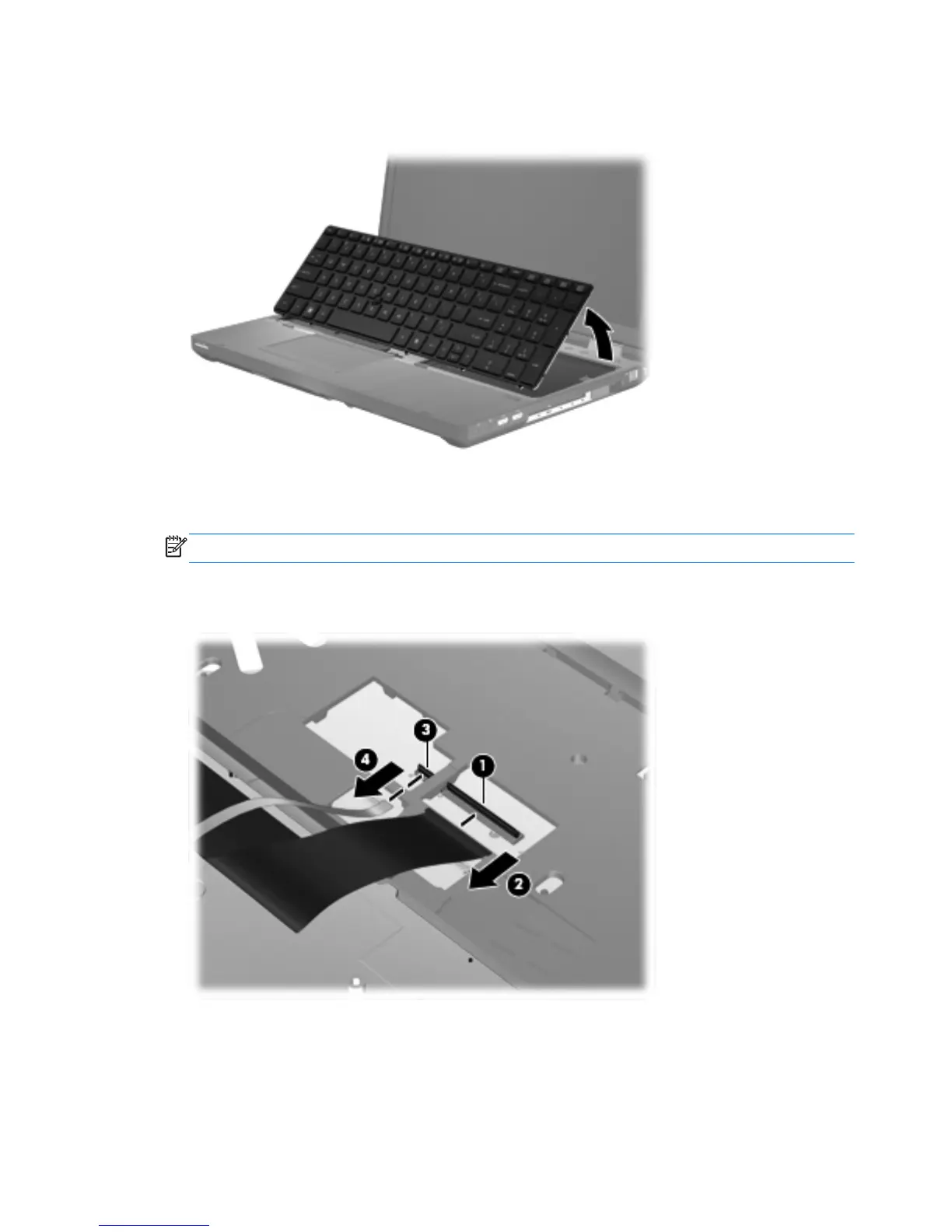

Lift the rear edge of the keyboard (1), and then swing the keyboard up and forward (2) until it
rests upside down on the palm rest.
7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached,
and then disconnect the keyboard cable (2) from the keyboard.
NOTE: The pointing stick cable is present on select models only.
8. Release the ZIF connector (3) to which the pointing stick cable is attached, and then disconnect
the pointing stick cable (4) from the system board.
9. Remove the keyboard.
Reverse this procedure to install the keyboard.
