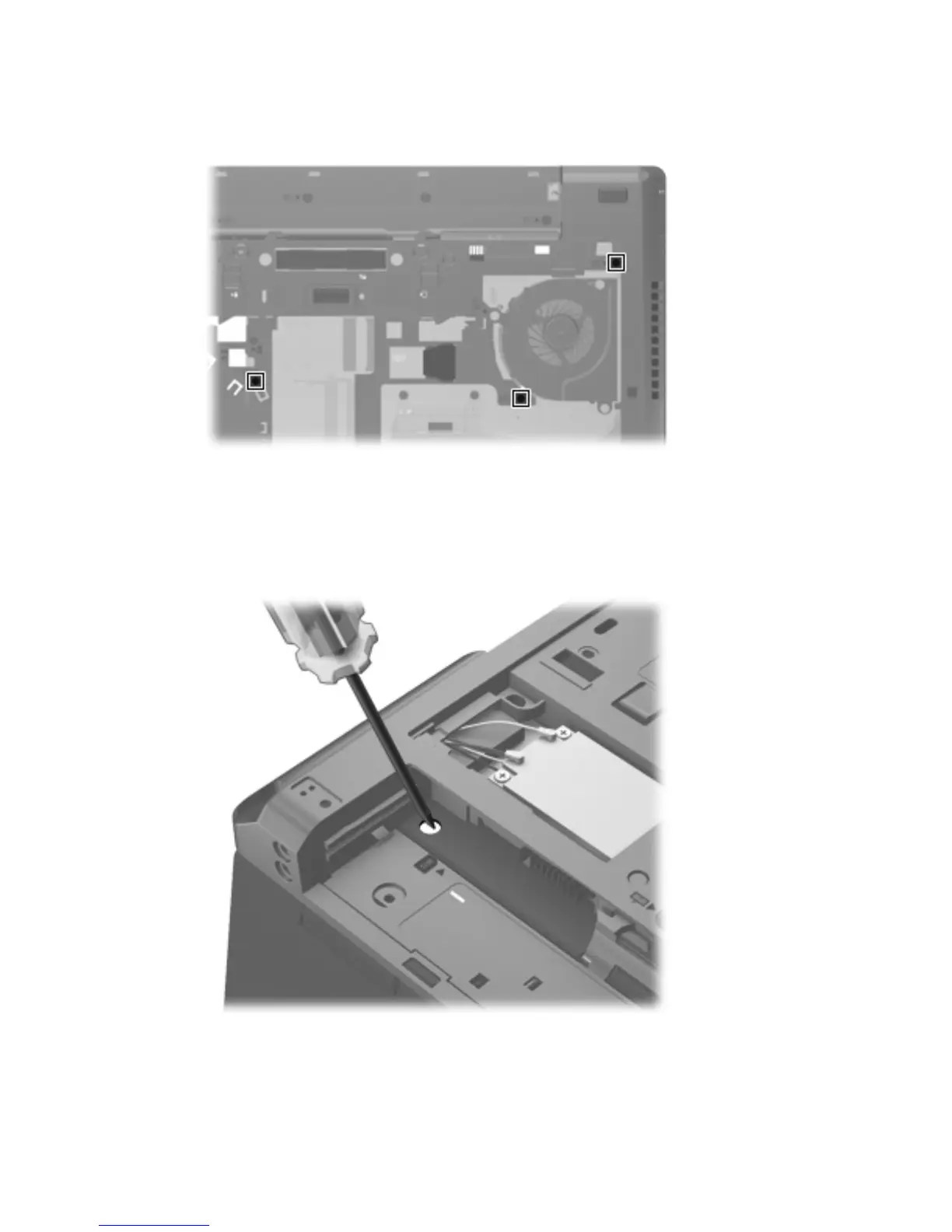

Remove the keyboard:
1. Loosen the three Phillips captive screws that secure the keyboard to the computer.
2. Rest and secure the computer on its right side.
3. Partially open the computer.
4. Insert a screw driver or similar thin tool into the keyboard release opening in the battery bay,
and then press on the back of the keyboard until the keyboard disengages from the computer.
5. Turn the computer right-side up with the front toward you.
Component replacement procedures
91
