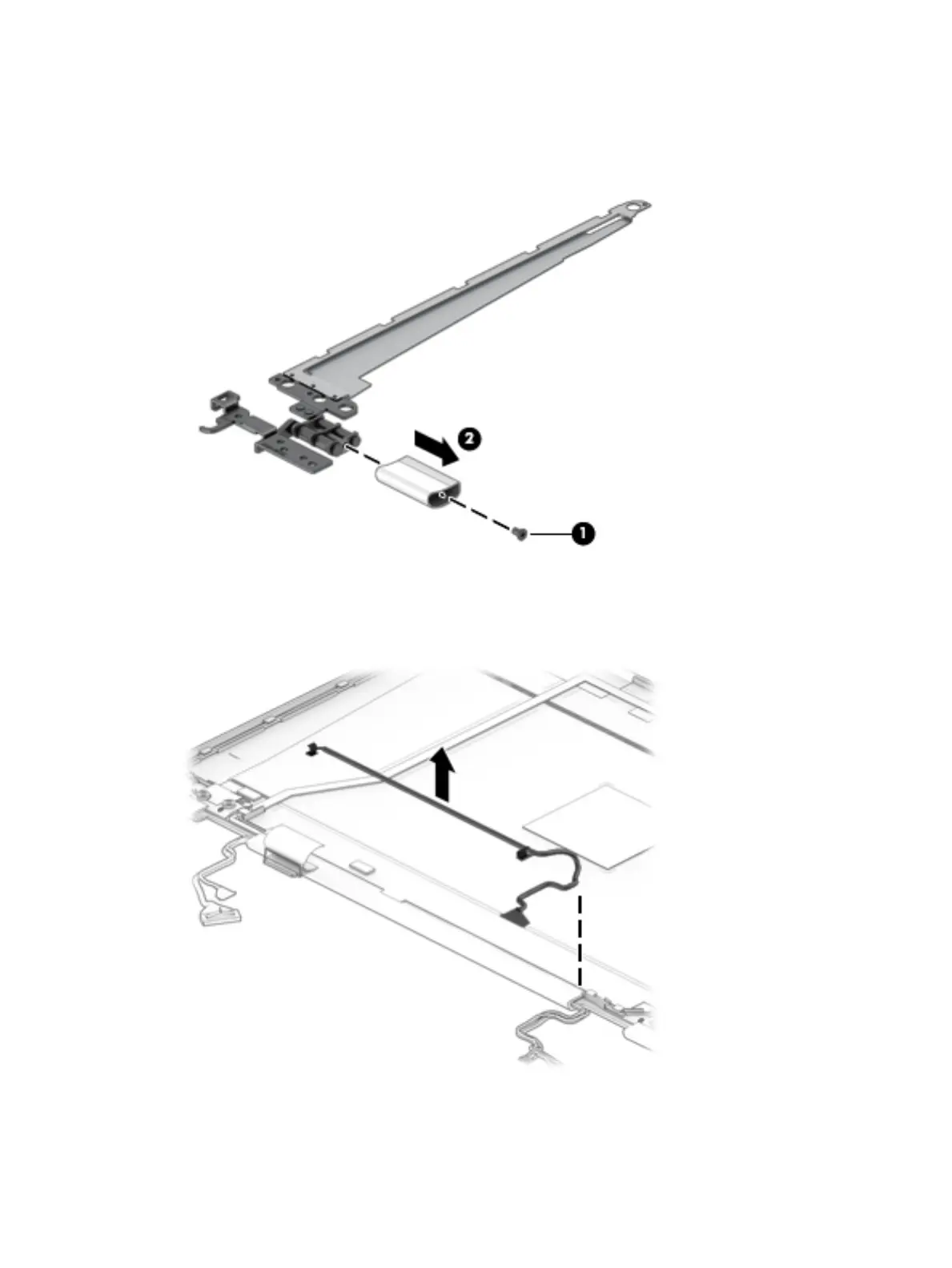

10. If it is necessary to remove the hinge cover, remove the Phillips M2.0×3.0 screw (1) from inside of each
hinge cover, and then pull the cover o the hinge (2).
The display hinge covers are available using spare part number L29056-001.
11. If it is necessary to replace the touch control cable, lift the cable o the display enclosure.
The touch control cable is available in the Display Cable Kit using spare part number L31174-001.
70 Chapter 6 Removal and replacement procedures for Authorized Service Provider parts
