2-13
Installing the Switch
Installation Procedures
Wall or Under-Table Mounting
You can mount the switch on a wall with either the front or rear panel facing
up.
WARNING For safe operation, do not install the switch with side ventilation or
fan ducts facing up or down.
For the Switch 2520G-8-PoE, the network ports must be facing up. Do
not mount the switch with ports facing down.
Caution The switch should be mounted only to a wall or wood surface that is at least
1/2-inch (12.7 mm) plywood or its equivalent.
1. Use a #1 Phillips (cross-head) screwdriver and attach the mounting
brackets to the switch with the included 8-mm M4 screws.
2. Attach the switch to the wall or wood surface with two 5/8-inch number
12 wood screws (not included).

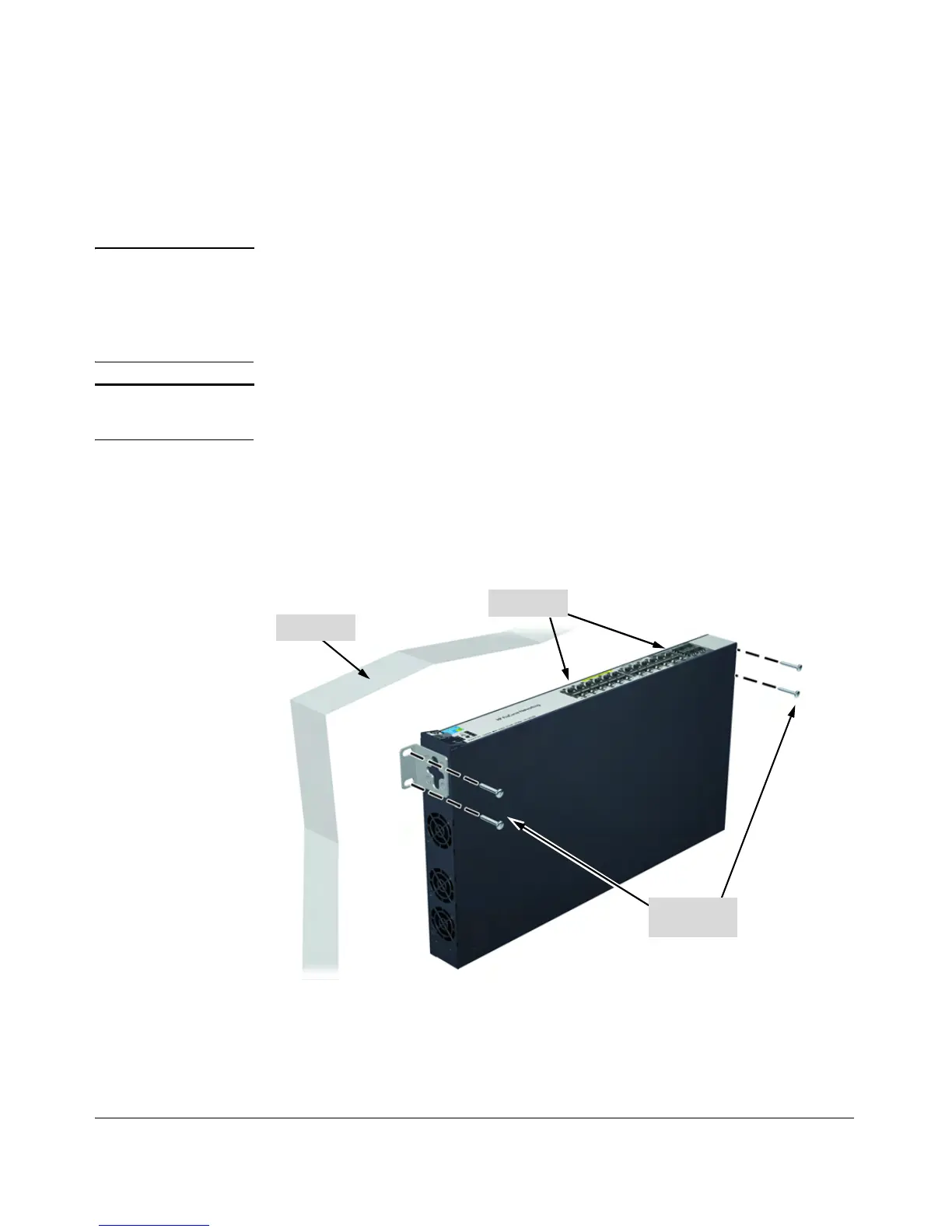

Figure 2-7. Wall Mounting the Switch 2520G-24-PoE
Wall
5/8-inch
wood screws
RJ-45 Ports
