2-15
Installing the Switch
Installation Procedures

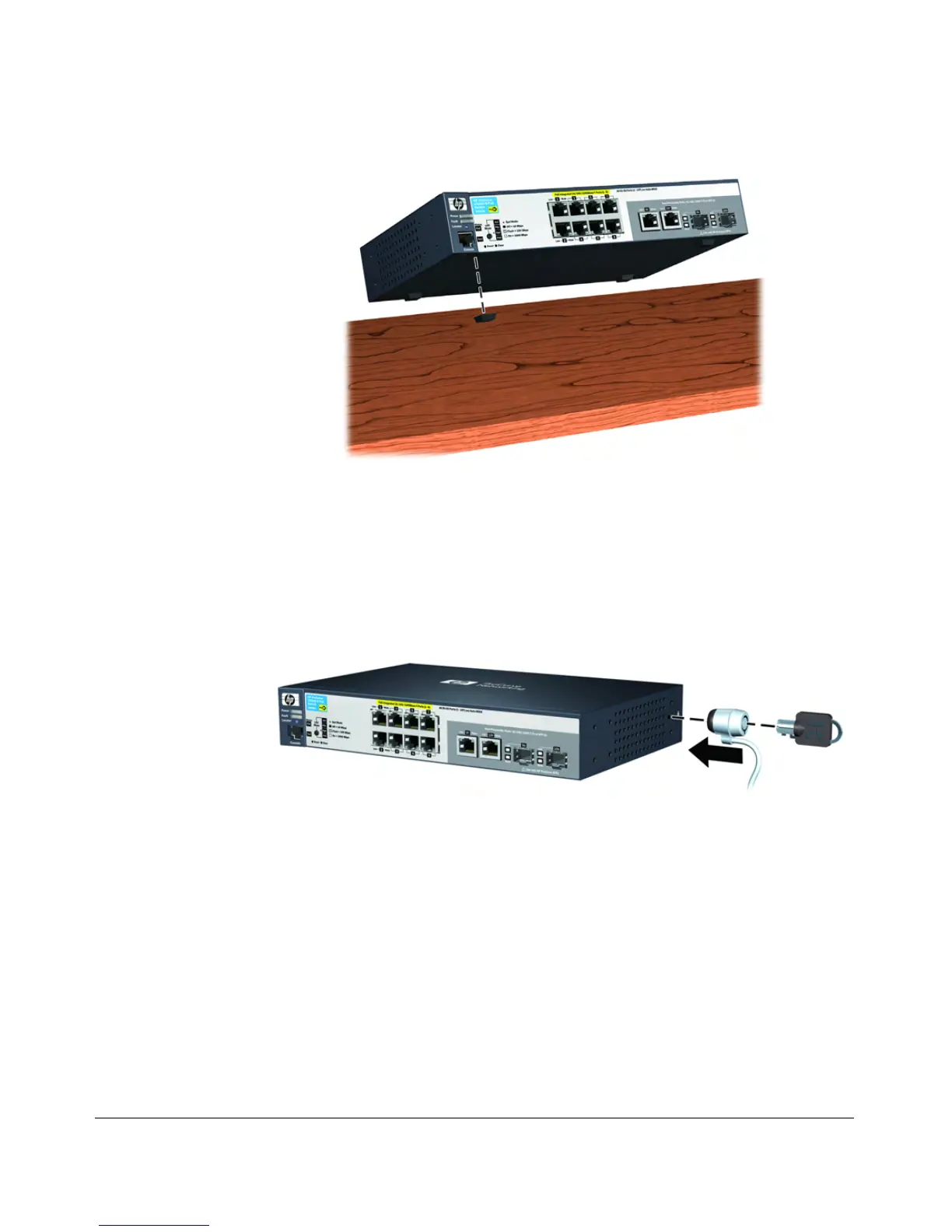

Figure 2-9. Horizontal Surface Mounting
Using a Kensington Security Cable
To prevent unauthorized removal of the Switch 2520G-8-PoE, you can use a
Kensington Slim MicroSaver security cable (not included) to attach the switch
to an immovable object.
Figure 2-10. Using a Security Cable
4. Connect the Switch to a Power Source
1. For the Switch 2520G-24-PoE, plug the included power cord into the
switch’s power connector and into a nearby AC power source.
For the Switch 2520G-8-PoE, plug the AC/DC adapter’s power cord into
the switch, and then plug the AC/DC power adapter into a nearby AC
power source.
