HP ProCurve 5406zl User Manual

4-14
Switch Meshing
Configuring Switch Meshing
Example. For the topology with a four-switch mesh shown in Figure 4-11, a
show mesh command issued on the North switch would produce the following
output:
North# show mesh
Adjacent Hosts
Port State | Hostname Address Peer Port Mesh Warning
------ --------------- + -------- ------------- ------------- ------------
13 Established | East 001560-f9e300 001560-f9f3f3 No
14 Established | South 001f28-244a00 001f28-245ac3 No
15 Established | West 001279-884300 001279-8853f3 No
See the log file for details of warnings.

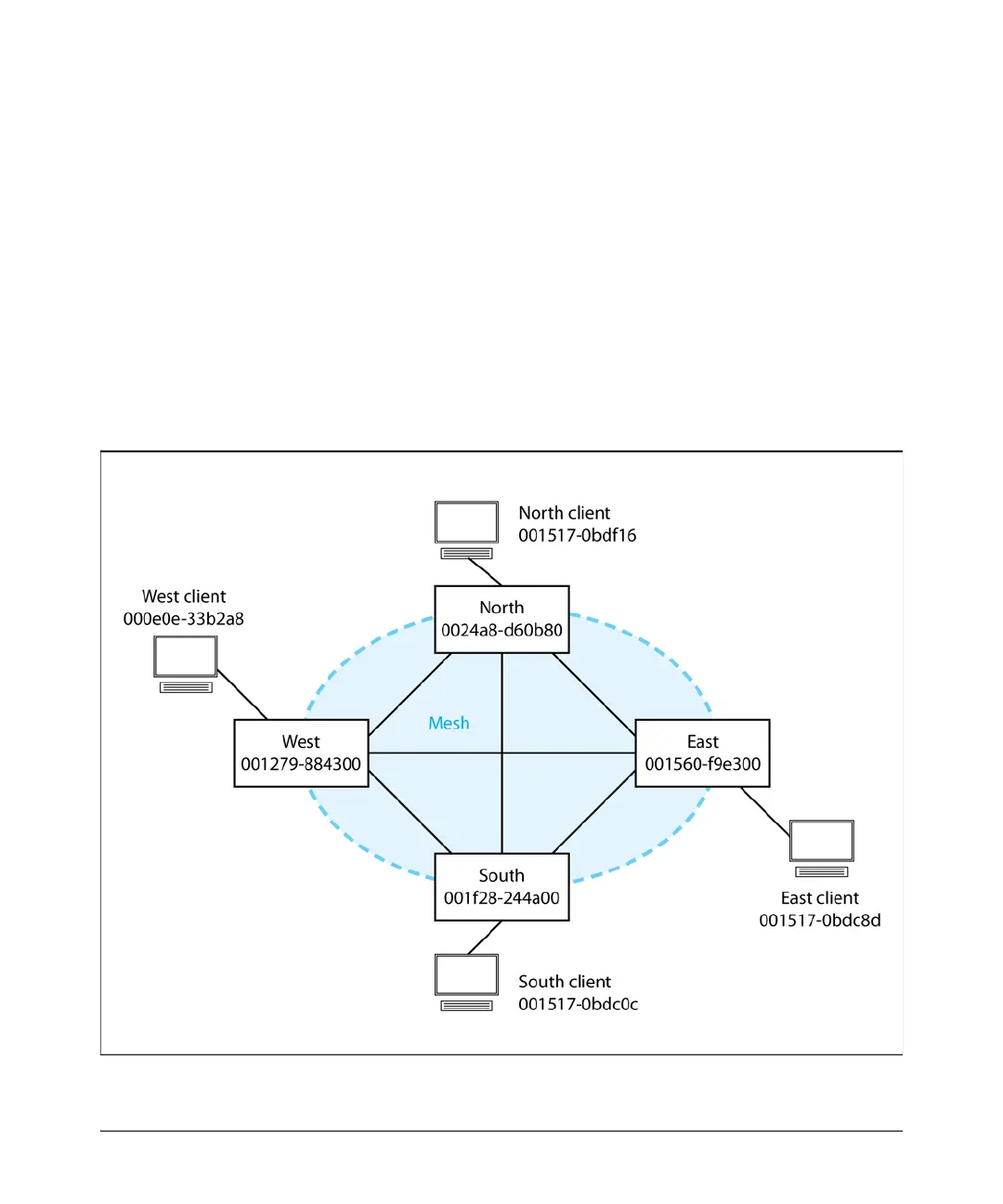

Figure 4-11. Mesh Topology Example

HP ProCurve 5406zl Specifications

General

Product Name	HP ProCurve 5406zl
Category	Switch
Layer	Layer 3
Operating Temperature	32°F to 131°F (0°C to 55°C)
Operating Humidity	15% to 95% non-condensing
Management	SNMP, CLI
Power Supply	Redundant power supplies (optional)
Memory	128 MB flash, 512 MB SDRAM
