HP ProCurve J8766A Installation Guide

14
ProCurve Switch vl Modules
Installing the Modules

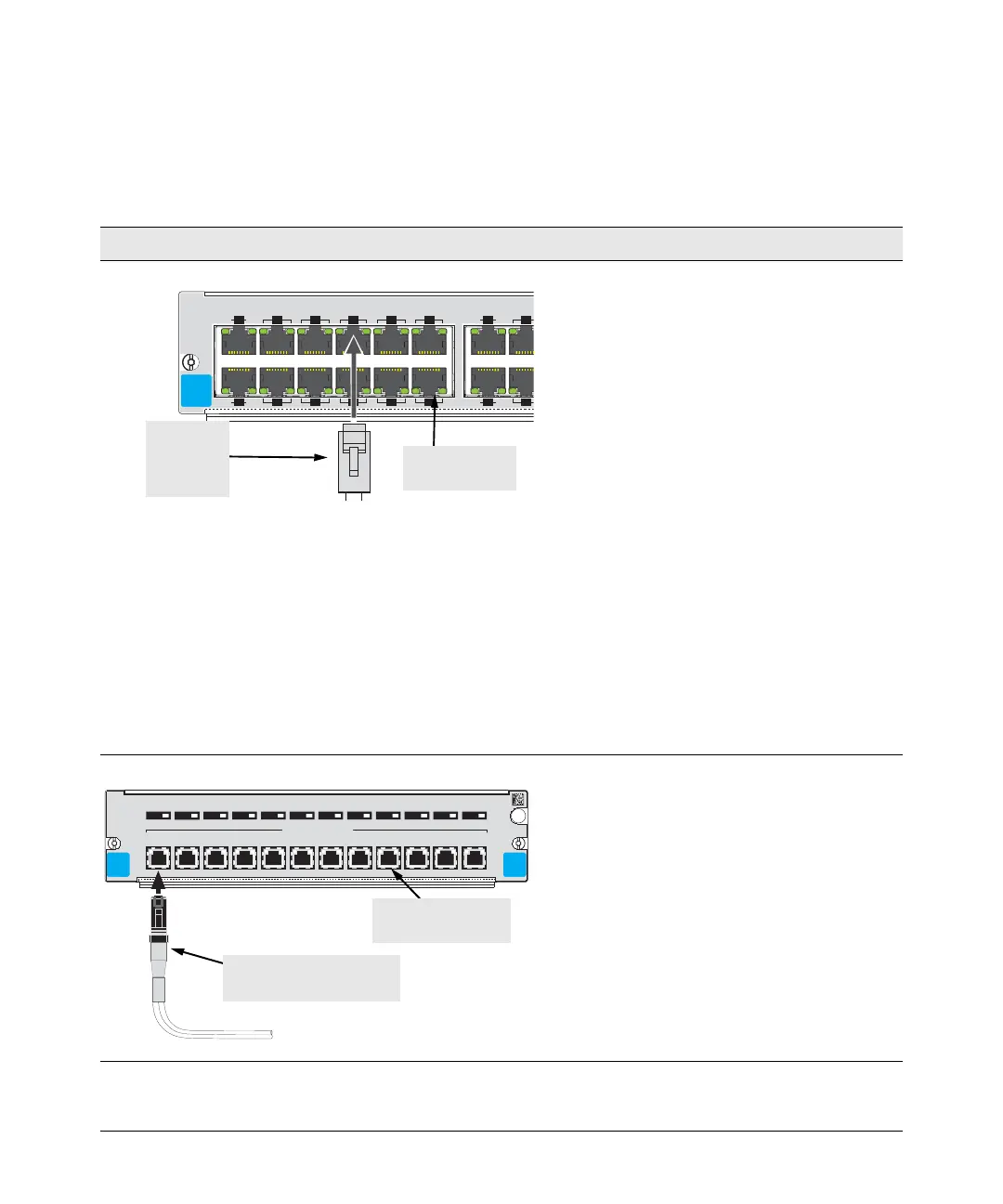

Connect the appropriate network cables to the module's ports as shown in
the table below. For more information on the cable specifications, see
“Cables” on page 28.
Supported Cable Types
Module Cable Type Maximum Length
10/100-TX, Gig-T, and Gig-T/SFP vl Modules
10 Mbps operation:
category 3, 4, or 5,
100-ohm balanced
twisted-pair cable
100 meters
(recommended)
100 Mbps operation:
category 5, 100-ohm
balanced twisted-pair
cable
100 meters
1000 Mbps (Gigabit)
operation: category
5e, 100-ohm cable is
recommended,
although category 5
cable may also work.
100 meters
Notes:
• The RJ-45 ports on this module have the HP Auto MDI-X feature. In the default configuration, Auto, either a straight-
through or crossover cable can be used to connect the port to any other 1000Base-T, 100Base-TX or 10Base-T device.
See the Note on page 13.
• Since the 10Base-T operation is through the 10/100Base-TX or 10/100/1000-T ports, if you ever want to upgrade the
ports to 100Base-TX, it would be best to cable the ports initially with category 5 cable or better.
100-FX MTRJ vl Module
multimode fiber-optic
cables fitted with
MT-RJ connectors.
See “Fiber-Optic
Cables” on page 29 for
more information.
• full-duplex connec-
tions: 2 kilometers
• half-duplex connec-
tions: 412 meters
Continued on the next page.
ProCurve
10/1 00-T
vl Module
J8765A
13
15
1197
5
31
Link Mode Link Mode
14
16
12108
6
42
Link Mode Link Mode
10/1 00Base-TX P orts — all ports are HP A uto MDI-
X
twisted-pair
cable with
RJ-45
connector
RJ-45 ports with
“HP Auto MDI-X”
2 31 4 5 6 7 8 9 10 11 12
Link|Mode
100Base-FX MTRJ P or ts
123456789101112
ProCurve
100-FX MTRJ
vl Module
J8763A
vl
Module
100-FX ports with
MT-RJ connectors
multimode fiber-optic cable
with MT-RJ connector
