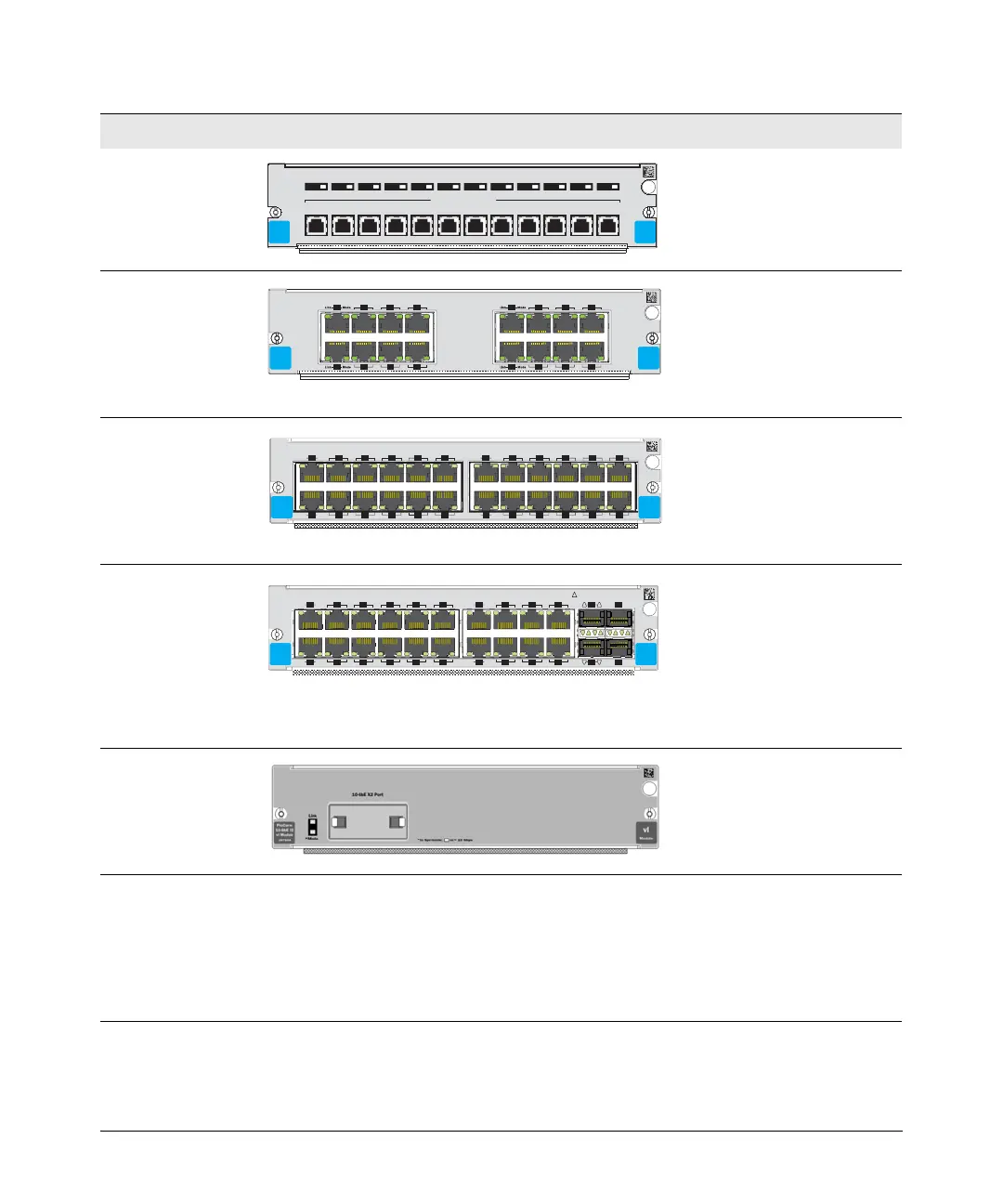

ProCurve Switch vl Modules
Descriptions
Contact your ProCurve authorized networking reseller or your ProCurve
representative for information on availability of other products. You can also
visit the ProCurve Web site at www.procurve.com to get more information.
ProCurve Switch vl
12-Port 100-FX MTRJ
Module
(J8763A)
12 100-FX ports with MT-RJ
connectors for 100 Mbps
networking over multimode
fiber-optic cable.
ProCurve Switch vl 16-
Port Gig-T Module
(J8764A)
16 twisted-pair ports with RJ-45
connectors for 10/100/1000 Mbps
operation over Category 5 or better
100-ohm UTP or STP cable
(category 5e recommended for
Gigabit) -- all ports have the IEEE
802.3ab Auto MDI/MDI-X feature.
ProCurve Switch vl
24-Port Gig-T Module
(J8768A)
24 twisted-pair ports with RJ-45
connectors for 10/100/1000 Mbps
operation over Category 5 or better
100-ohm UTP or STP cable
(category 5e recommended for
Gigabit) -- all ports have the IEEE
802.3ab Auto MDI/MDI-X feature.
ProCurve Switch vl 20-
Port Gig-T + 4-Port SFP
Module (J9033A)
See page 1 for
supported mini-GBICs
and this module also
supports the J9054B
ProCurve 100-FX SFP-
LC Transceiver.
20 twisted-pair ports with RJ-45
connectors for 10/100/1000 Mbps
operation over Category 5 or better
100-ohm UTP or STP cable
(category 5e recommended for
Gigabit) -- all ports have the IEEE
802.3ab Auto MDI/MDI-X feature,
plus 4 mini-GBIC or SFP ports.
ProCurve Switch vl
1-Port 10-GbE Module
(J8766A)
1 port for installing any of the
supported ProCurve 10 Gig X2
transceivers.**
**Supported transceivers: The following ProCurve transceivers are supported by the J8766A vl Module (as of this
printing):
• ProCurve 10-GbE X2-SC SR Optic (J8436A)
• ProCurve 10-GbE X2-SC LR Optic (J8437A)
• ProCurve 10-GbE X2-SC ER Optic (J8438A)
• ProCurve 10-GbE X2 CX4 Xcvr (J8440B)
• ProCurve 10-GbE CX4 Optical Media Converter (J8439A)
Module Description
2
31
4
5 6 7 8 9 10
11
12
Link|Mode
100Base-FX MTRJ Ports
123456789101112
ProCurve
100-FX MTRJ
vl Module
J8763A
vl
Module
10/100/1000Base-T Ports  all ports are HP Auto MDI-X
ProCurve
16p Gig-T
vl Module
J8764A
vl
Module
1
3
57 9111315
2468 10121416
ProCurve
24p Gig-T
vl Module
J8768A
vl
Module
13 151197531 17 19
21 23
Link Mode Link Mode
14 161210
8642
18 20 22 24
Link Mode Link Mode
10/100/1000Base-T Ports  all ports are IEEE Auto MDI/MDI-X
ProCurve
Gig-T/SFP
vl Module
J9033A
vl
Module
13
15
11
9
7
5
3
1
17
19
21
23
Link Mode Link Mode
14
16
12
10
86
42
18 20 22 24
Link Mode Link Mode
10/100/1000Base-T Ports (1 - 20)  Ports are IEEE Auto MDI/MDI-X
Link Mode
Link Mode
Use ProCurve Mini-GBICs and SFPs only
!
