HP ProDesk 400 G6 MT - Page 3

EL-MF877-00 Page 3
Template Revision B
PSG instructions for this template are available at EL-MF877-01

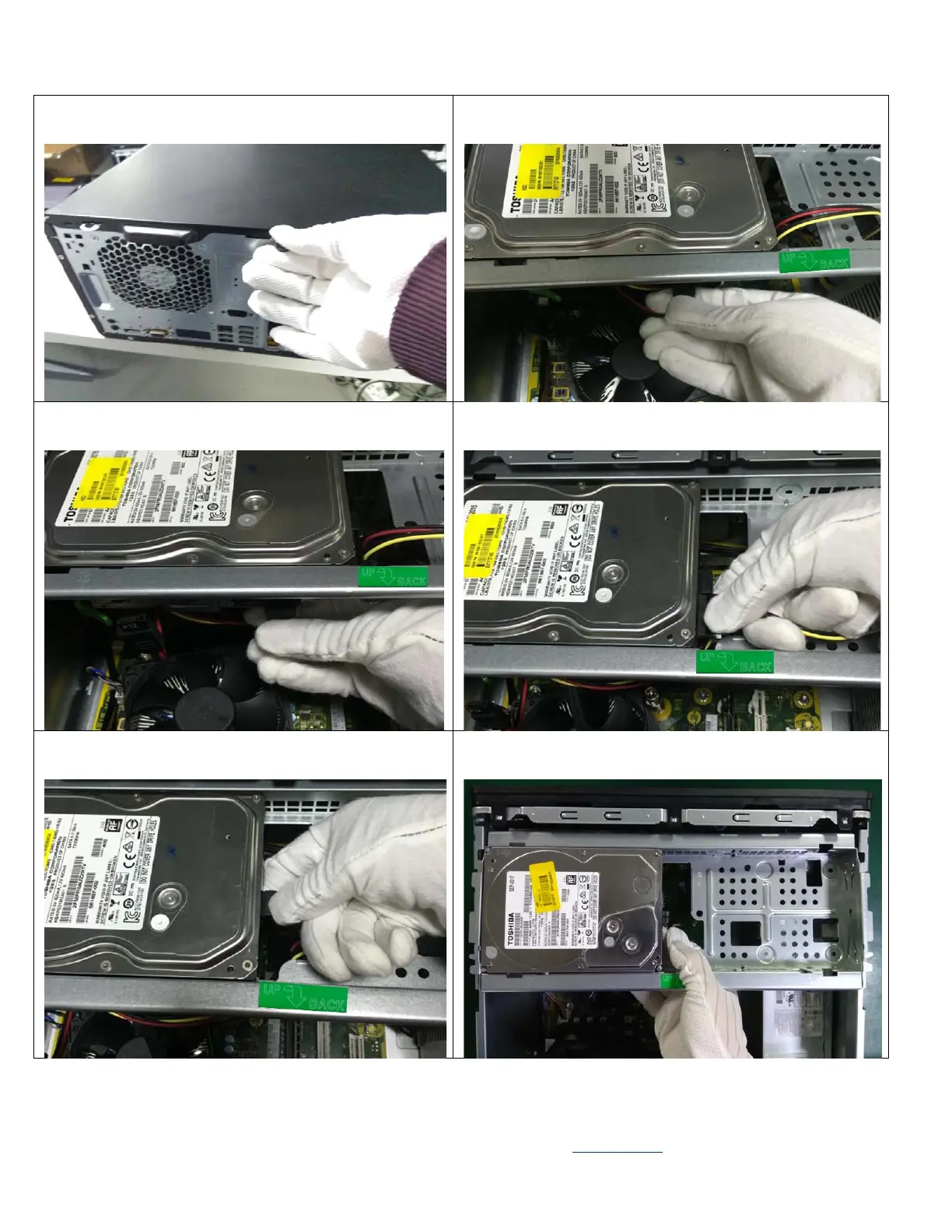

Figure 1 Loose thumb screw and remove access panel
Figure 2 Disconnect ODD power cable from ODD
Figure 3 Disconnect SATA cable from ODD
Figure 4 Disconnect HDD Power cable from HDD
Figure 5 Disconnect SATA cable from HDD
Figure 6 Remove the driver cage from chassis
