HP ProDesk 400 G6 MT - Page 4

EL-MF877-00 Page 4
Template Revision B
PSG instructions for this template are available at EL-MF877-01

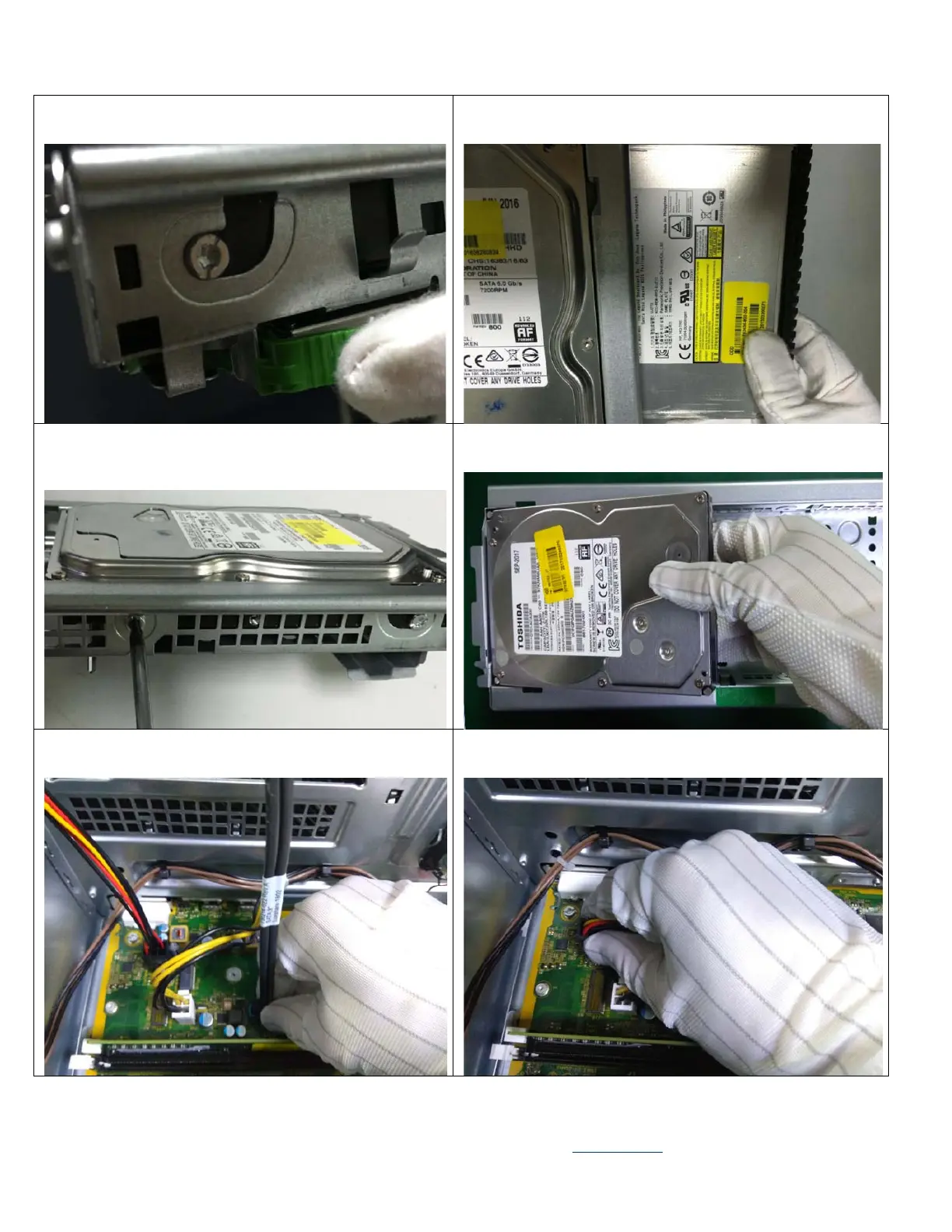

Figure 7 Press the ODD’s latch on ODD cage
Figure 8 Remove the ODD from ODD cage
Figure 9 Use T-15 screwdriver to loose the screws of HDD
from cage
Figure 10 Remove the HDD from HDD cage
Figure 11 Disconnect SATA cable from the MB
Figure 12 Disconnect ODD/HDD PSU cables from the MB
