HP ProDesk 400 G6 MT - Page 6

EL-MF877-00 Page 6
Template Revision B
PSG instructions for this template are available at EL-MF877-01

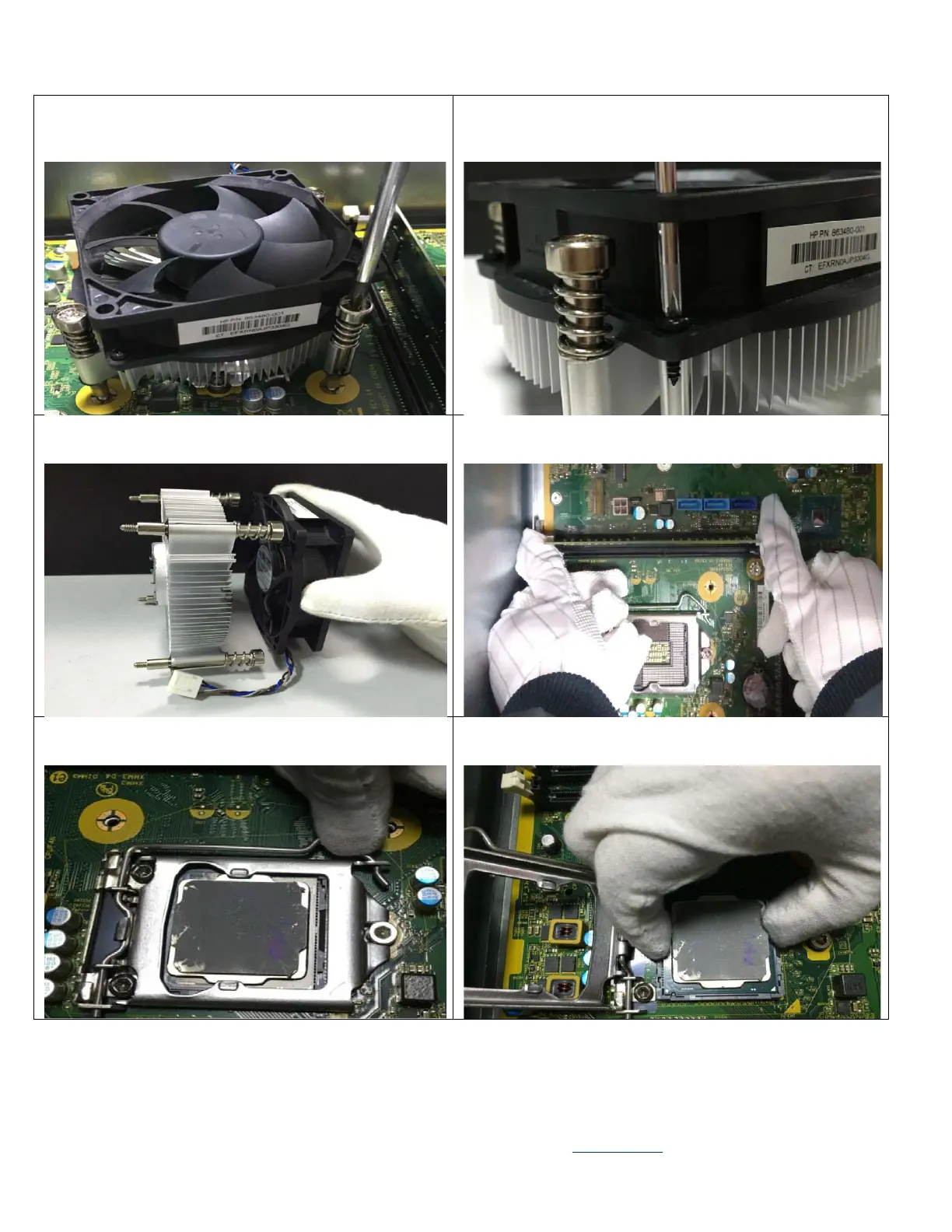

Figure 19 Use T-15 screwdriver to loose the screws and
remove heat sink
Figure 20 Use PH1 screwdriver to loose the screws and
remove the fan
Figure 21 Separate the fan from CPU heat sink
Figure 22 Remove the Memory card from the board
Figure 23 Rotate the handle and open it up
Figure 24 Remove the CPU from the board
