HP ProDesk 400 G6 MT - Page 7

EL-MF877-00 Page 7
Template Revision B
PSG instructions for this template are available at EL-MF877-01

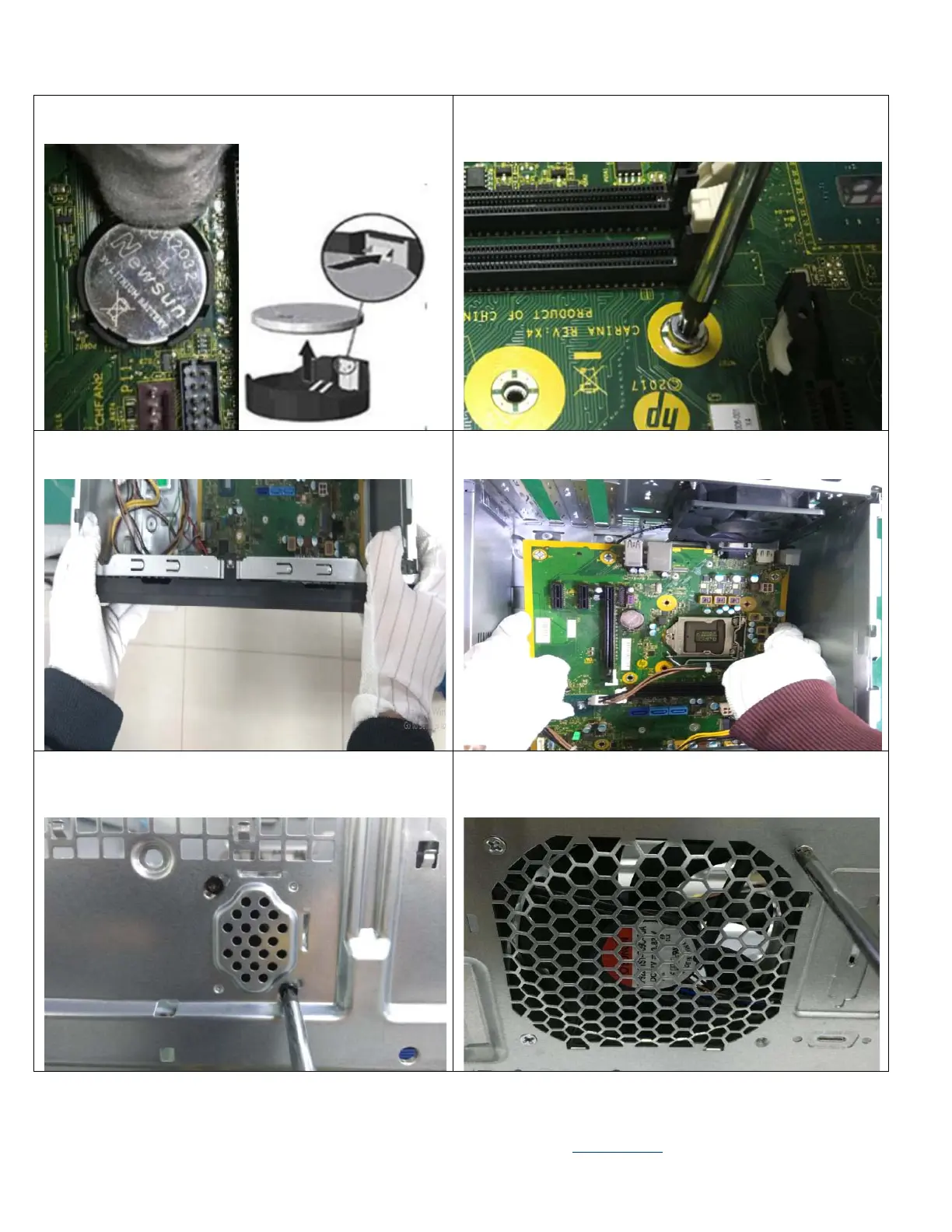

Figure 25 Remove the battery from the system board
Figure 26 Use T-15 screwdriver to loose the screws of MB
from board
Figure 27 Remove front panel from chassis
Figure 28 Remove MB from chassis
Figure 29 Use T-15 screwdriver to loose the screws of
speaker and remove it
Figure 30 Use PH1 screwdriver to loose the screws of
system fan and remove it
