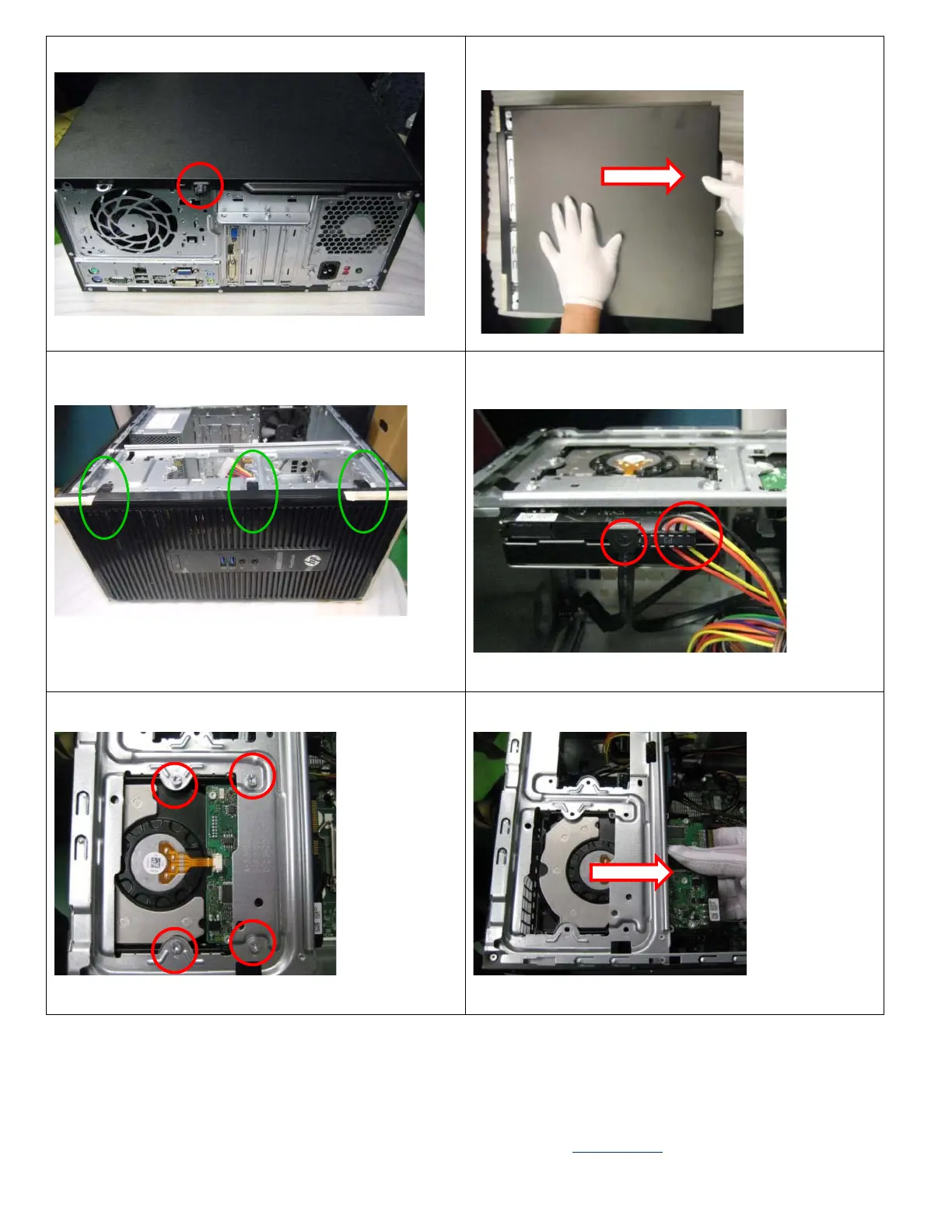

Figure1 Release Thumb screw on the access panel.
Figure2 Griping the tab at the end of access panel, pull
towards the rear and remove from unit.
Figure3 Pull 3 pcs bezel hooks and remove the front bezel
from chassis.
Figure4 Disconnect the SATA and power cables from
HDD
Figure5 Release the HDD screws
Figure6 Remove the HDD form chassis
