HP ProDesk 490 G2

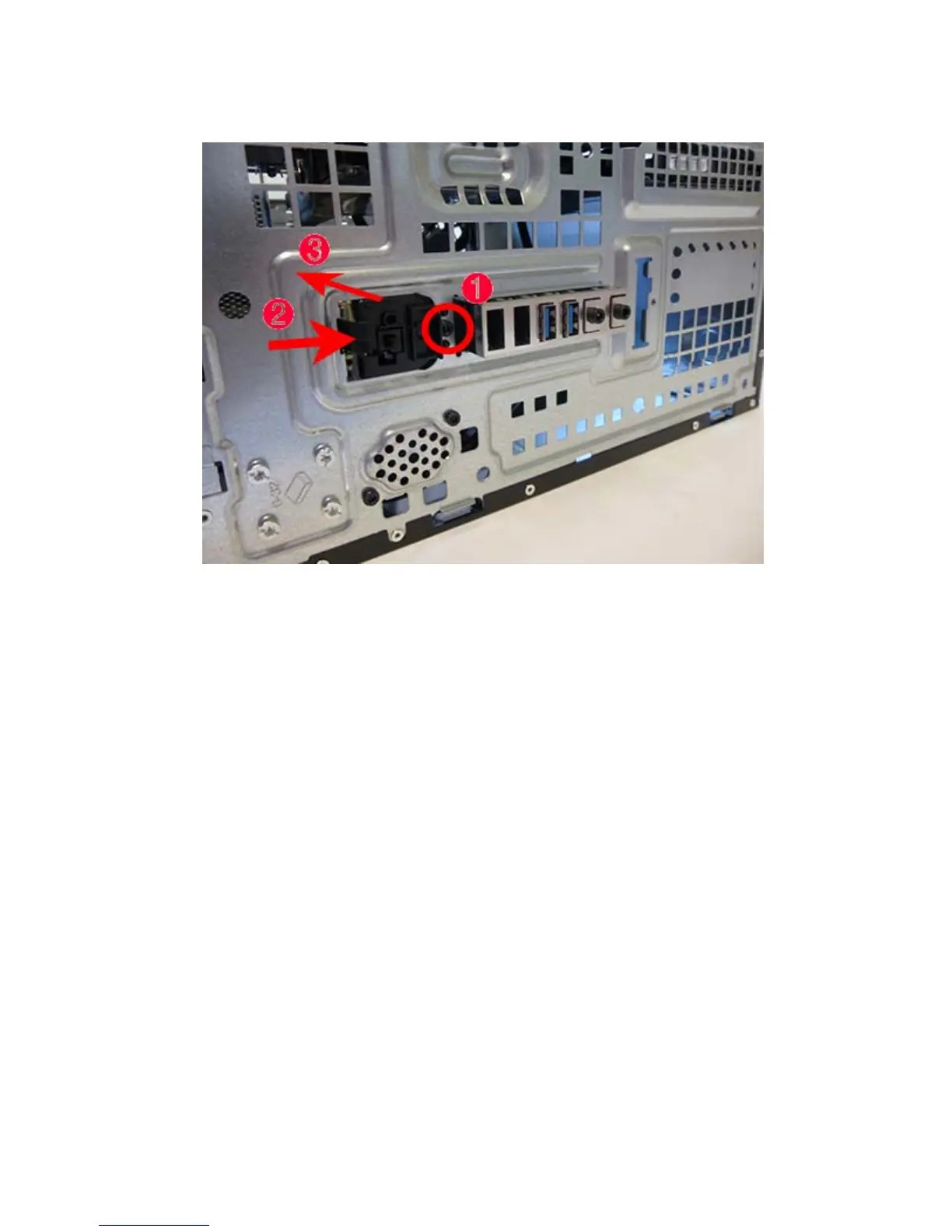

7. Press the latch on the left side of the assembly (2), and then rotate the left side of the assembly into
the chassis (3).
8. From the inside of the chassis, remove the assembly from the computer.
To reinstall the assembly, reverse the removal procedure.
Front I/O and power switch assembly 53
