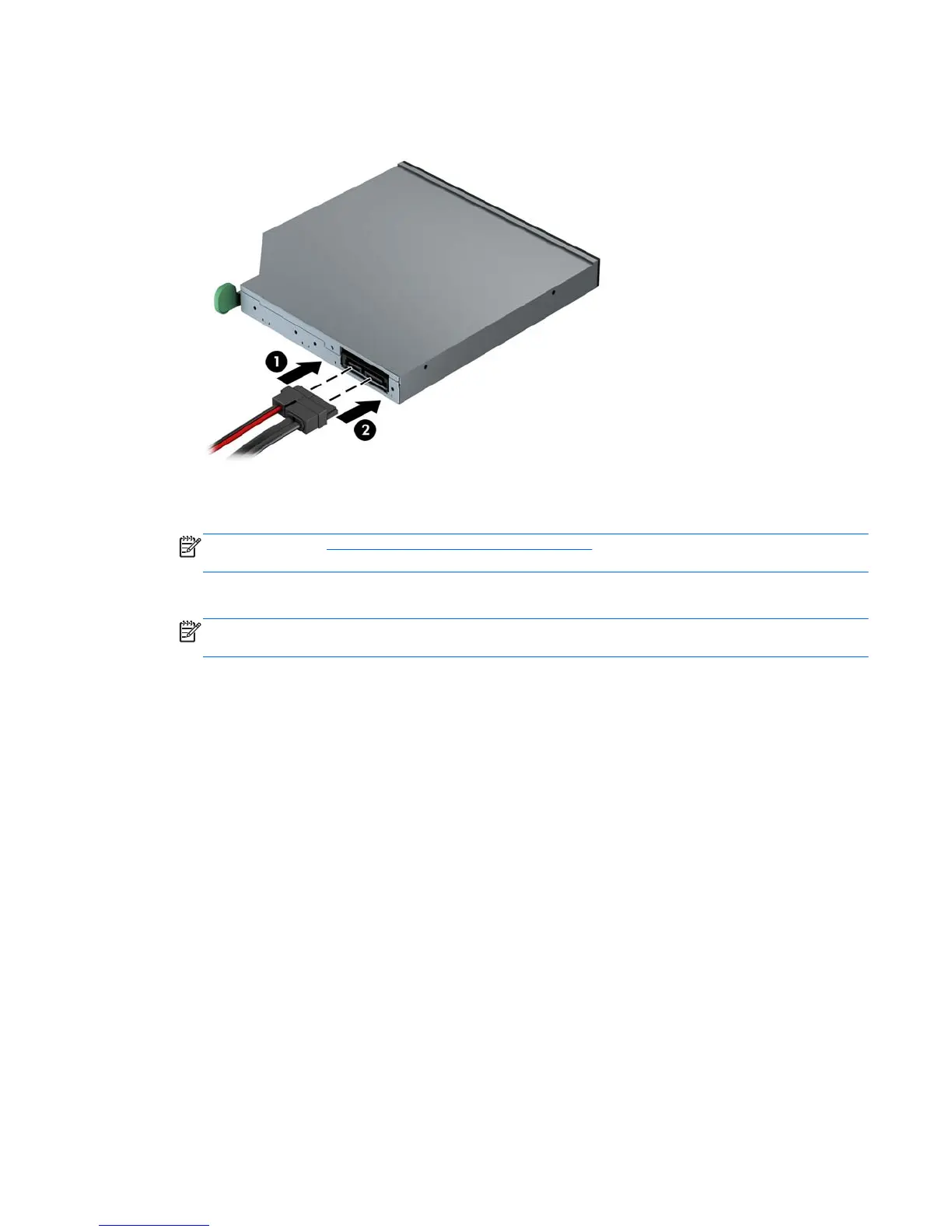

9. Connect the power cable (1) and data cable (2) to the rear of the optical drive.
10. Connect the opposite end of the data cable to one of the light blue SATA connectors on the
system board.
NOTE: Refer to System board connections on page 17 for an illustration of the system board
drive connectors.
11. Replace the front bezel.
NOTE: An optional bezel trim piece that surrounds the front of the slim optical drive is available
from HP. Install the bezel trim piece in the front bezel before replacing the front bezel.
12. Replace the computer access panel.
13. Reconnect the power cord and any external devices, then turn on the computer.
14. Lock any security devices that were disengaged when the access panel was removed.
ENWW Installing and removing drives 39
