Setup 19

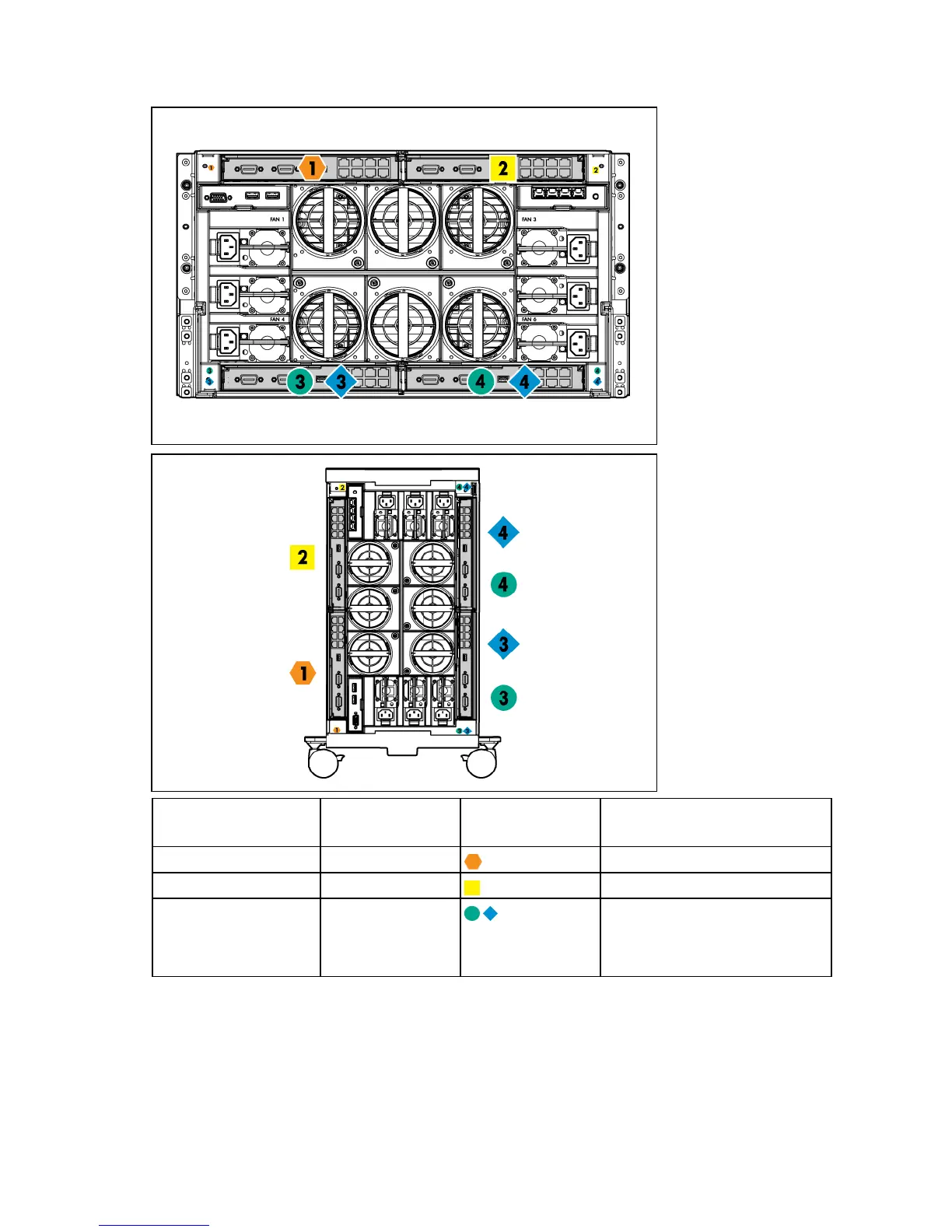

• HP BladeSystem c3000 Enclosure and Tower Enclosure
Server blade signal Interconnect bay
number
Interconnect bay
label
Notes
NICs 1, 2 (embedded) 1
—
Mezzanine 1 2
Four port cards connect to bay 2
Mezzanine 2 3,4
• Four port cards
• Ports 1 and 3 connect to bay 3
• Ports 2 and 4 connect to bay 4
Connecting to the network
To connect the HP BladeSystem to a network, each enclosure must be configured with network
interconnect devices to manage signals between the server blades and the external network.
