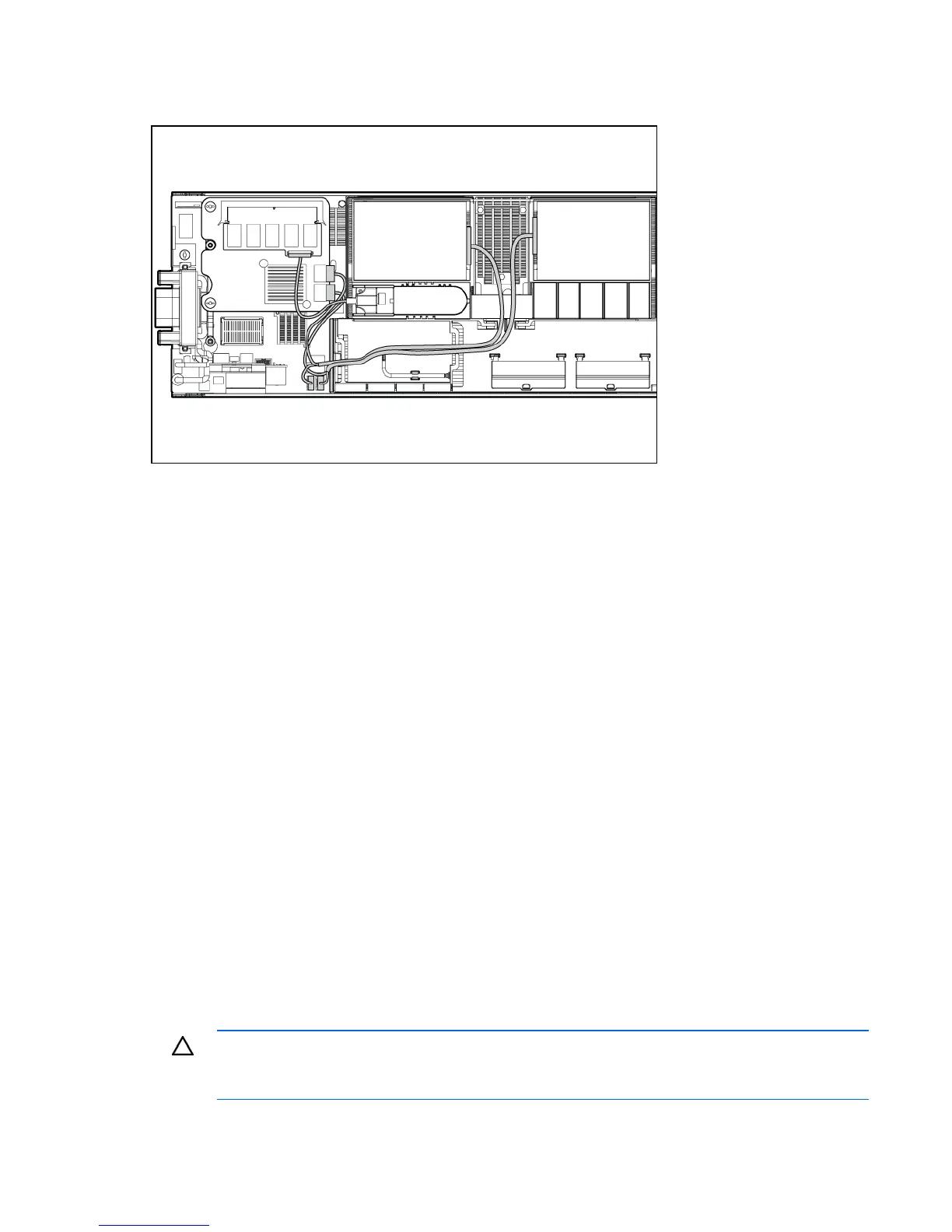

Cabling 50
The server blade supports SAS hard drives when the HP Smart Array P712m Controller is installed. For
more information, see "HP Smart Array P712m Controller option (on page 39)."
Using the HP c-Class Blade SUV Cable
The HP c-Class Blade SUV Cable enables the user to perform server blade administration, configuration,
and diagnostic procedures by connecting video and USB devices directly to the server blade. For SUV
cable connectors, see "HP c-Class Blade SUV Cable (on page 11)."
Connecting locally to a server blade with video and
USB devices
Use the SUV cable to connect a monitor and any of the following USB devices:
• USB hub
• USB keyboard
• USB mouse
• USB CD/DVD-ROM drive
• USB diskette drive
Numerous configurations are possible. This section offers two possible configurations. For more
information, see "USB support and functionality (on page 68)."
Accessing a server blade with local KVM
For this configuration, a USB hub is not necessary. To connect additional devices, use a USB hub.
CAUTION: Before disconnecting the SUV cable from the connector, always squeeze the
release buttons on the sides of the connector. Failure to do so can result in damage to the
equipment.
