Cabling 46
• USB keyboard
• USB mouse
• USB CD/DVD-ROM drive
• USB diskette drive
Numerous configurations are possible. This section offers two possible configurations. For more
information, see "USB support and functionality (on page 63)."
Accessing a server blade with local KVM
For this configuration, a USB hub is not necessary. To connect additional devices, use a USB hub.
CAUTION: Before disconnecting the SUV cable from the connector, always squeeze the
release buttons on the sides of the connector. Failure to do so can result in damage to the
equipment.
1. Connect the SUV cable to the server blade.
2. Connect the video connector to a monitor.
3. Connect a USB mouse to one USB connector.
4. Connect a USB keyboard to the second USB connector.

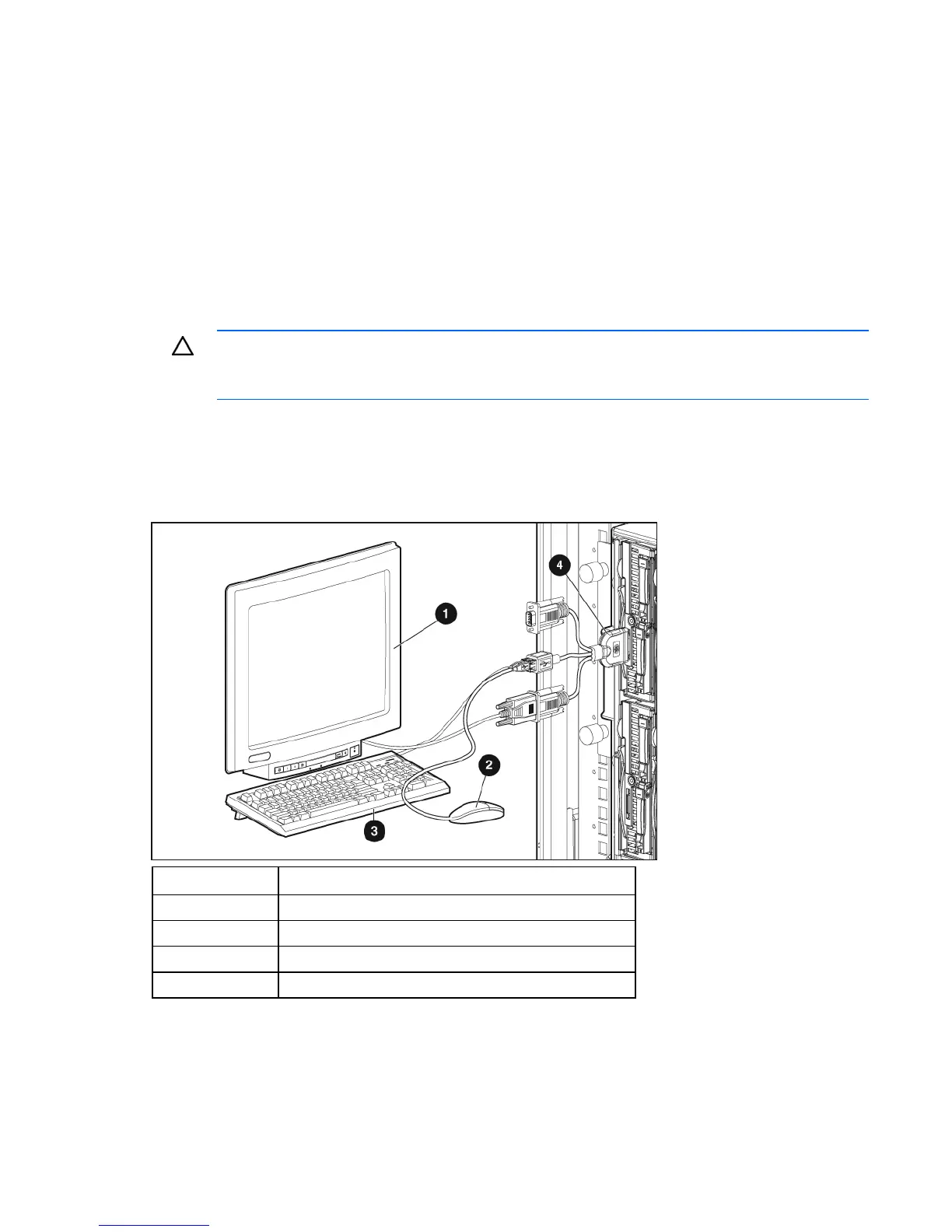

Item Description
1 Monitor
2 USB mouse
3 USB keyboard
4 HP c-Class Blade SUV Cable
Accessing local media devices
Use the following configuration when configuring a server blade or loading software updates and
patches from a USB CD/DVD-ROM or a USB diskette.
