Removal and replacement procedures 122

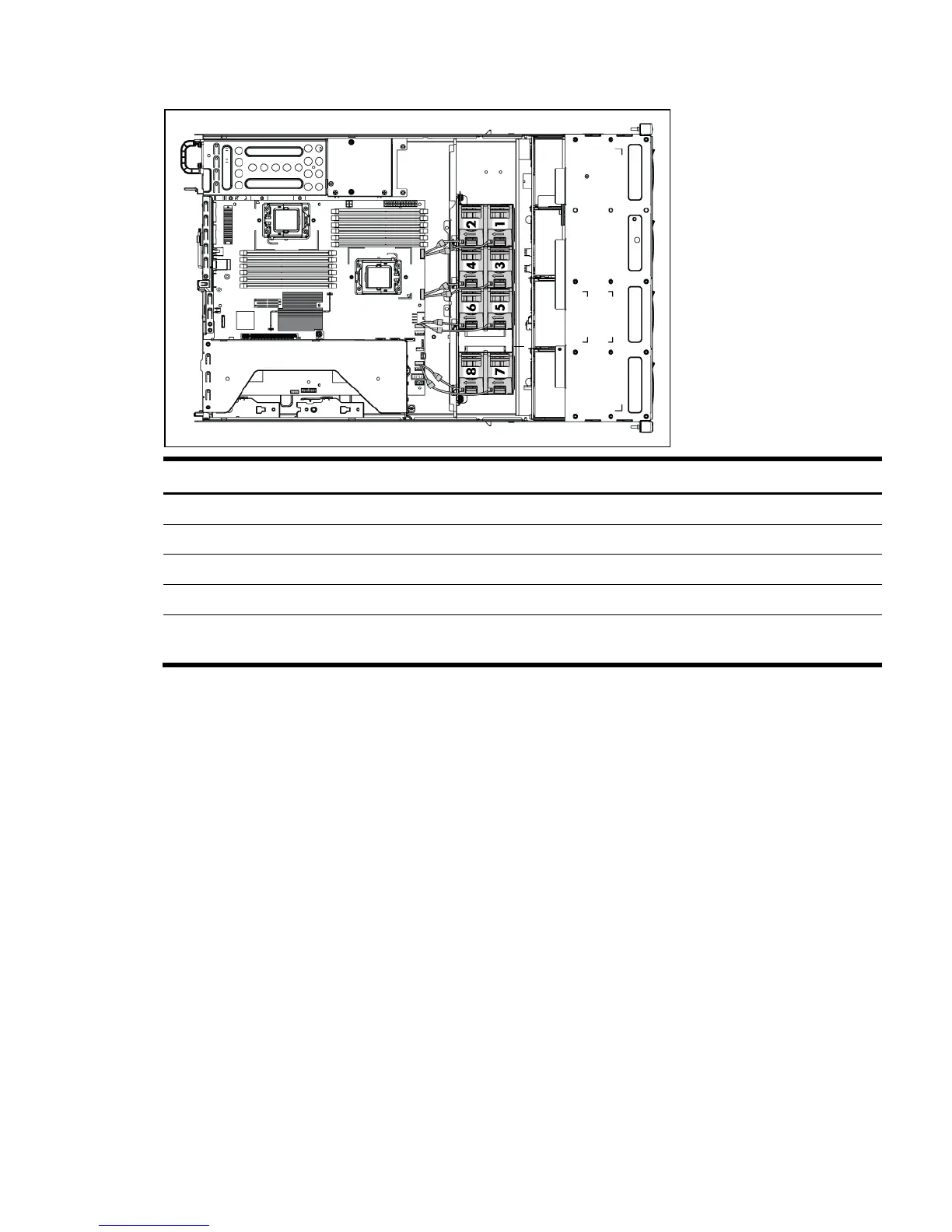

Figure 107 Connection of the Eight System Fans
Device number
Connector
System fan 1/2 J63 on the system board
System fan 3/4 J71 on the system board
System fan 5/6 J62 on the system board
System fan 7/8 J68 on the system board
System fans 1 to 6 are for the memory modules and processors, while system fan 7/8 is for the PCI slots and system
chipsets.
A new system fan can be installed to allow the server to operate properly in case a default system fan
becomes defective.
The installation and removal of fans on the system redundant fan cage and system non-redundant fan
cage are same, here we take the removal and installation of fans on the system non-redundant fan
cage for example.
To remove the system fan:
1. Power down the server.
2. Disconnect the power cord(s).
3. Unlock the server if necessary and remove the top cover as described in the sectionSystem
cover”.
4. Disconnect the system fan cable from its corresponding board connector.
5. Release the fan cable from the cable clip securing it to the chassis partition wall.
6. Squeeze the release tab on the system fan to release it from the chassis.
7. Lift the system fan away from the chassis.
