HP ProLiant DL360 - Mechanical Parts Exploded View; Mechanical Spare Parts List

Illustrated Parts Catalog
1-2 Compaq DL360 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: MicroMachine Part Number: 169616-006 Last Saved On: 12/31/01 10:29 AM
Mechanical Parts Exploded View
3
1
4
1
5
2

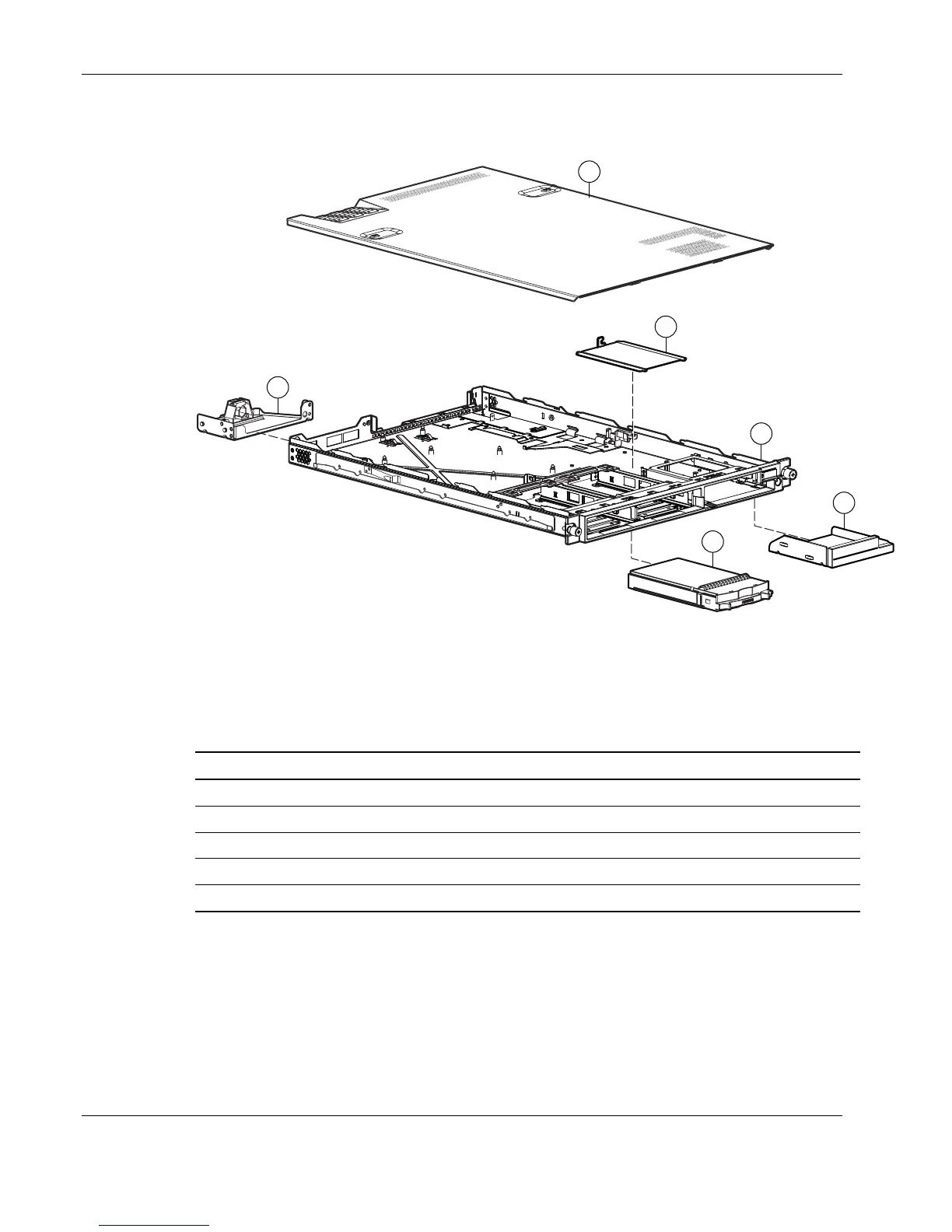

Figure 1-1: Mechanical parts exploded view
Mechanical Spare Parts List
Table 1-1: Mechanical Spares Parts List
Item Description Spare Part Number
1 Chassis with access panel 173838-001
2 Hard drive blank 122759-001
3 Bezel blank 173846-001
4 Cable protector 173844-001
5 Fixed cable tray 173839-001
