HP ProLiant DL360 - System Components Exploded View; System Components Spare Parts List

Illustrated Parts Catalog
Compaq DL360 Server Maintenance and Service Guide 1-3
COMPAQ CONFIDENTIAL Codename: MicroMachine Part Number: 169616-006 Last Saved On: 12/31/01 10:29 AM

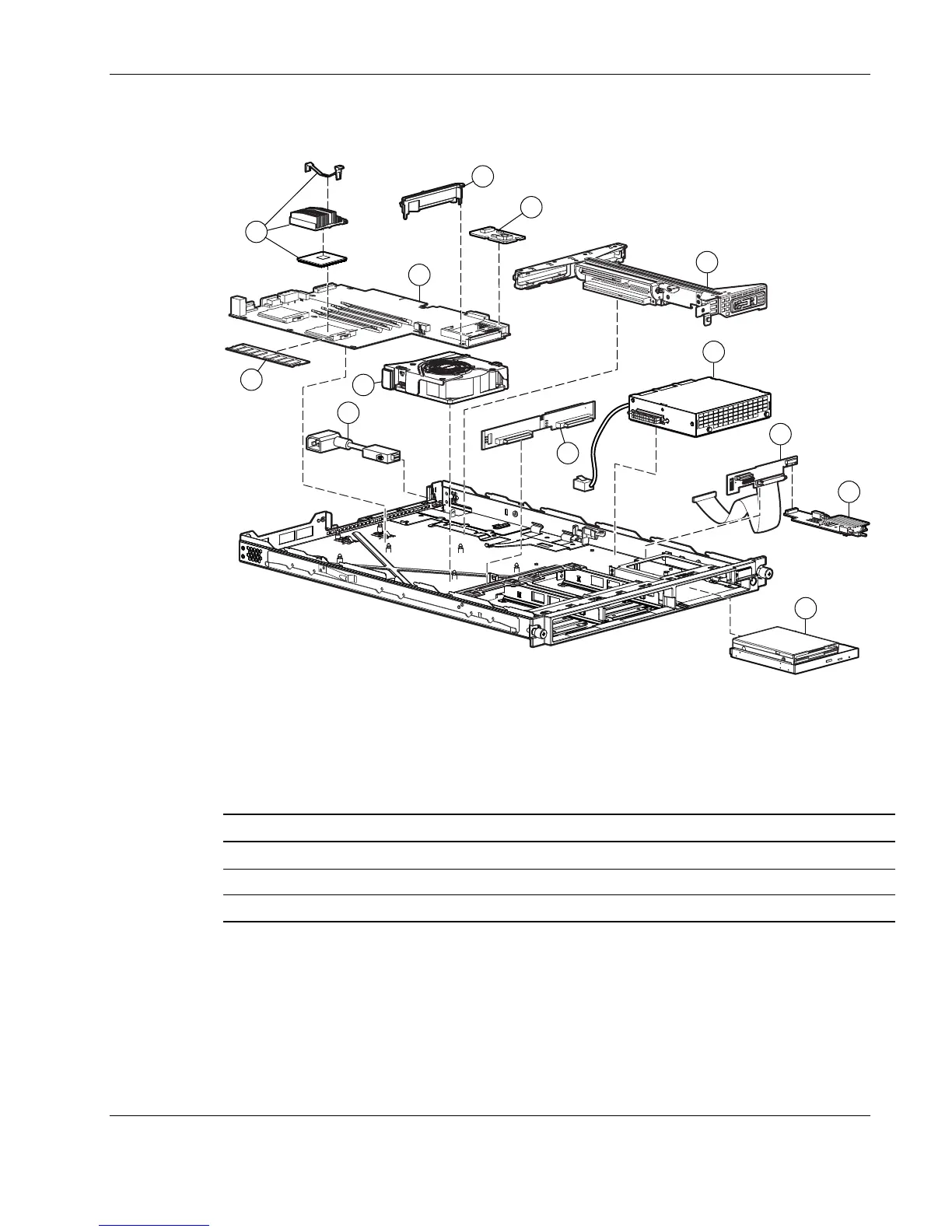

System Components Exploded View
12
11
7
10
14
17
15
6
13
18
16
8b
31
Figure 1-2: System components exploded view
System Components Spare Parts List
Table 1-2: System Components Spare Parts List
Item Description Spare Part Number
System Components
6 Fan assembly 173826-001
7 PCI riser board assembly 173827-001
continued
