Hot-Plug SCSI Hard Drives
To assess a hard drive’s status, you must observe and understand the hot-plug SCSI hard
drive status LEDs. For a detailed explanation of hard drive status LEDs, see Chapter 5,
“Connectors, Switches, and Status Indicators.”
WARNING: Read “Hot-plug Hard Drive Replacement Guidelines” in the Compaq
Servers Troubleshooting Guide prior to removing a hard drive.
To remove a hot-plug SCSI hard drive:
1. Press the release button to unlock the lever on the hard drive
 .
2. Pull the ejector lever to release the SCSI hard drive from the cage
 .
3. Pull the drive to remove it from the cage
 .
1
3
2

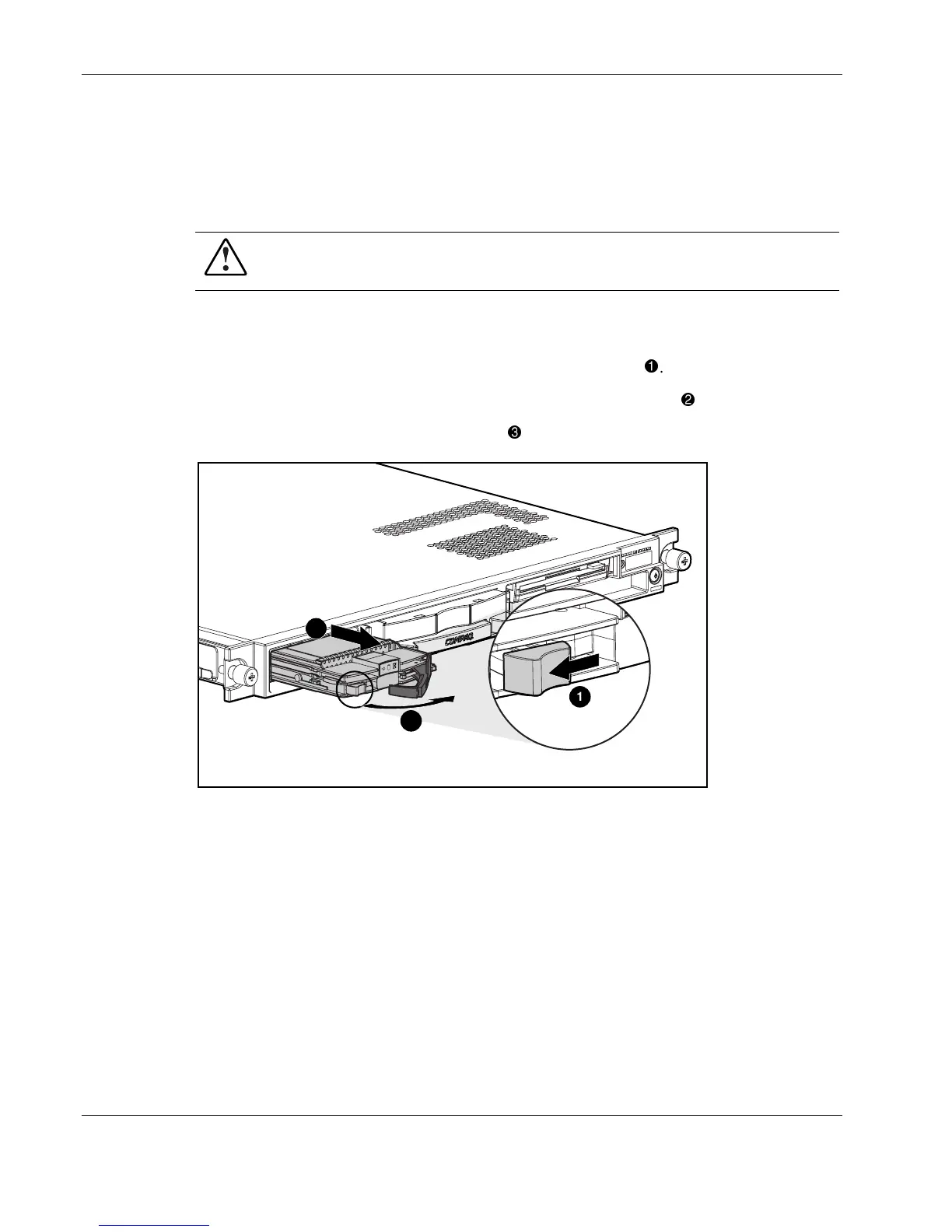

Figure 2-11: Removing a hot-plug SCSI hard drive
To replace the hard drive, slide the drive into the cage until it clicks, locking into place. Then,
close the lever.
