Removal and Replacement Procedures
Compaq ProLiant DL360 Server Maintenance and Service Guide 2-17
COMPAQ CONFIDENTIAL Codename: MicroMachine Part Number: 169616-006 Last Saved On: 12/31/01 11:05 AM
Server Access Panel
To remove the server access panel:
1. Complete the preparation procedures. See “Powering Down the Server” earlier in this
chapter.
2. Press down on the hood latches
, and hold.
3. Holding the latches, slide the access panel toward the rear of the unit about 0.5 inch
(1.25 cm) and lift to remove the panel
.
1
1
2

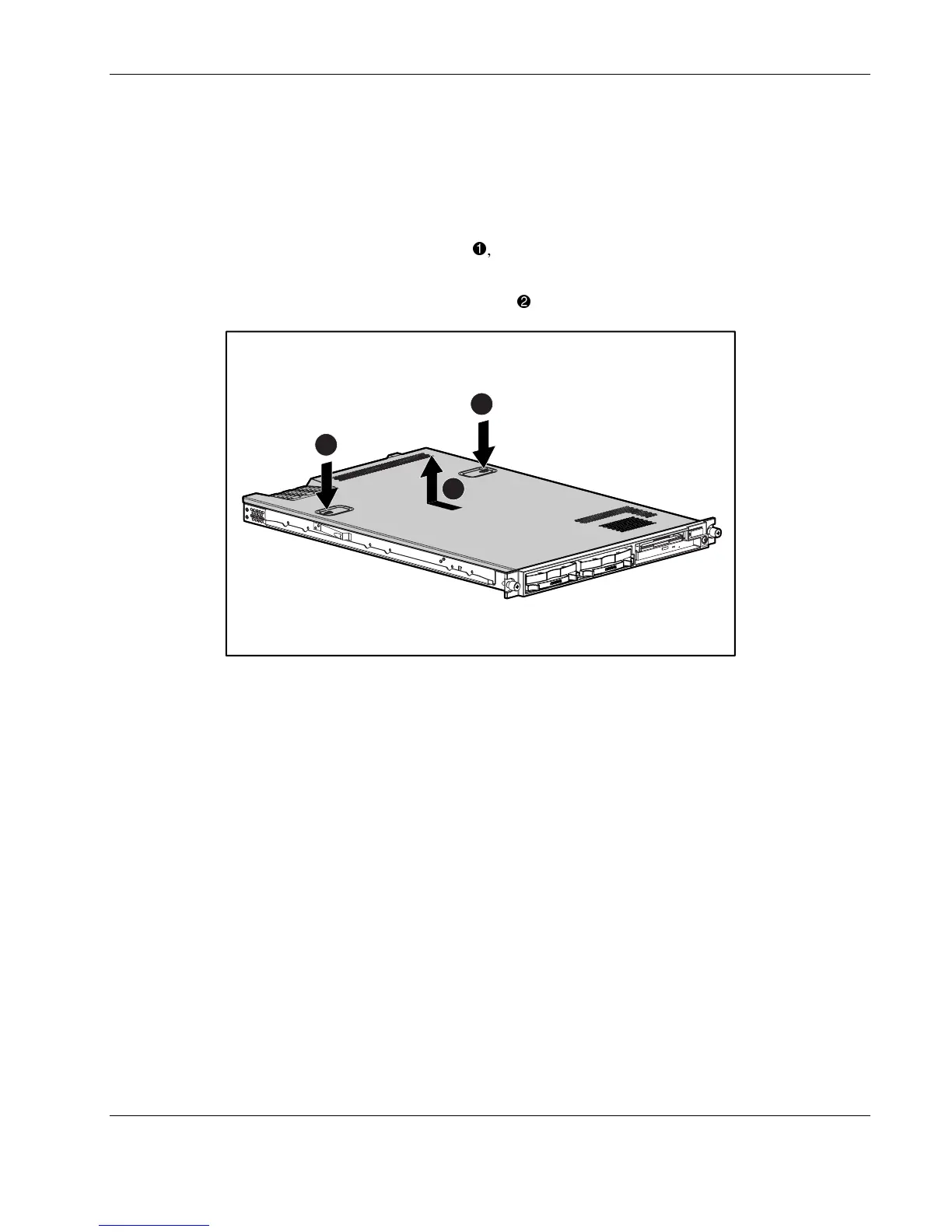

Figure 2-12: Removing the server access panel
Reverse steps 1 through 3 to replace the access panel.
