Removal and Replacement Procedures
Compaq ProLiant DL360 Server Maintenance and Service Guide 2-19
COMPAQ CONFIDENTIAL Codename: MicroMachine Part Number: 169616-006 Last Saved On: 12/31/01 11:05 AM
5. Carefully pull back and hold the plastic retaining clip
.
6. With the other hand, grasp the top center of the backplane, and pull up until the
backplane unseats from SCSI port 2
.
2
1

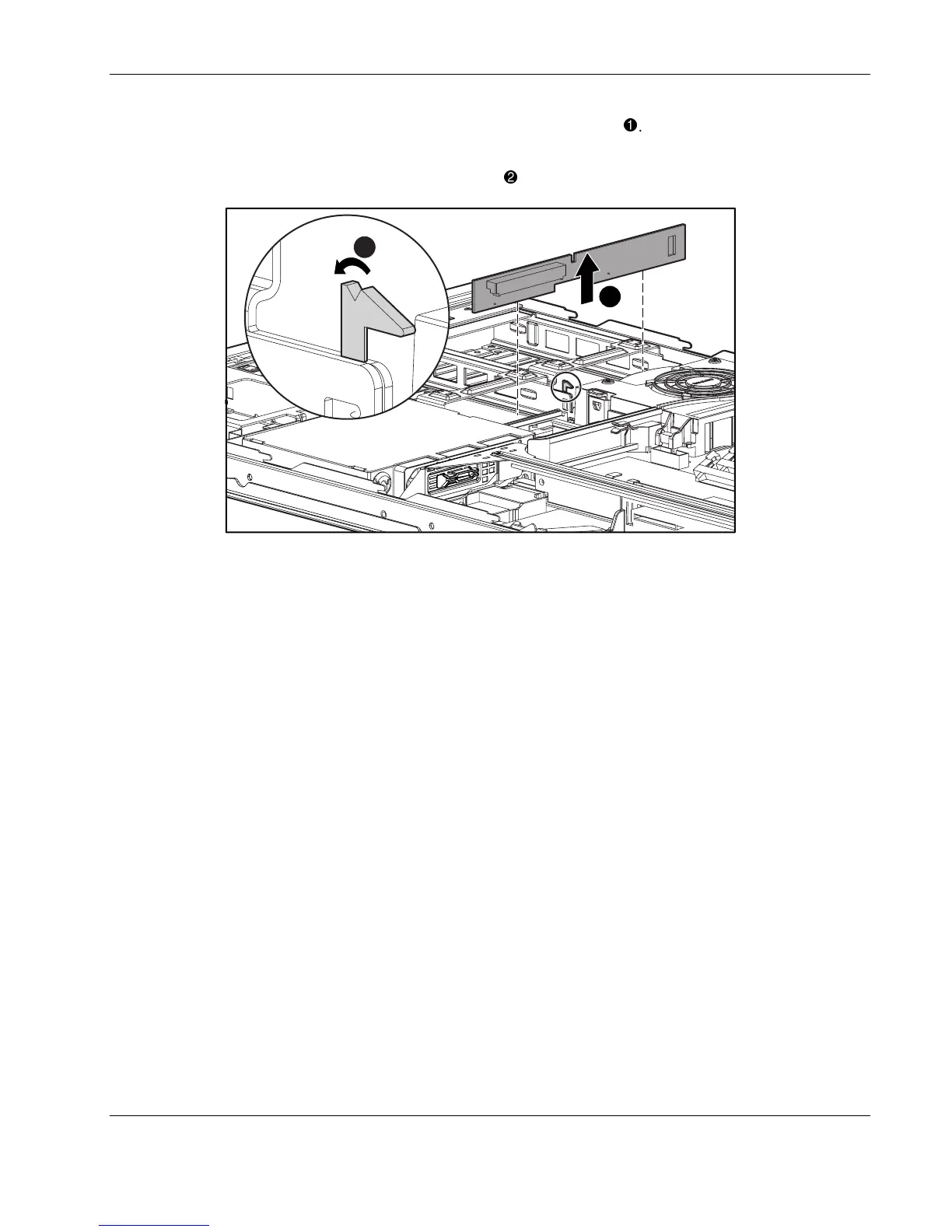

Figure 2-14: Removing the SCSI backplane
To replace the SCSI backplane, pull back on the retaining clip and insert the backplane until
it seats firmly in SCSI port 2.
