Removal and Replacement Procedures
2-36 Compaq ProLiant DL360 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: MicroMachine Part Number: 169616-006 Last Saved On: 12/31/01 11:05 AM
SDRAM DIMMs
ProLiant DL360 servers ship standard with one SDRAM DIMM installed in DIMM socket 1.
The following figure and table show the location of the DIMM slots on the system board.
1
2
3
4

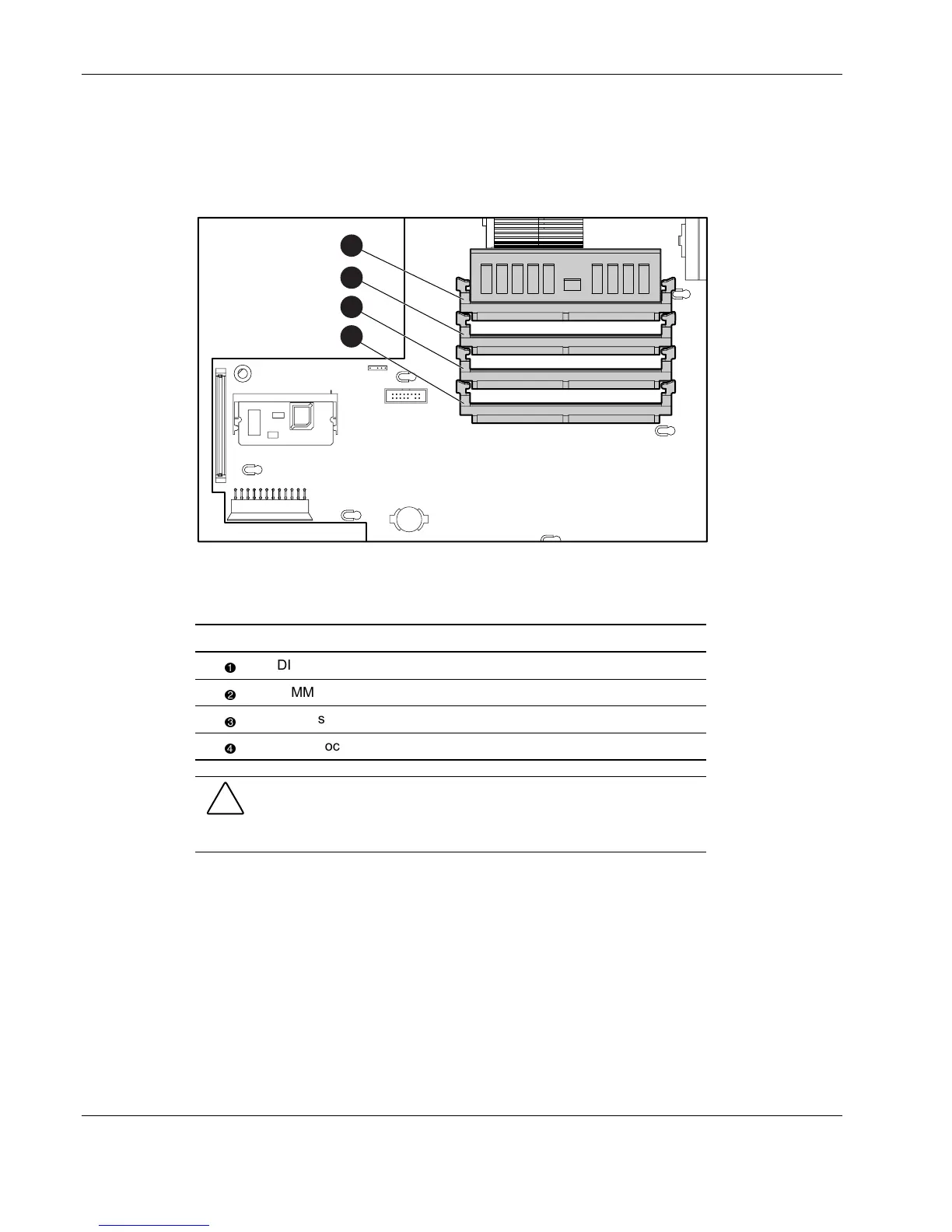

Figure 2-32: DIMM sockets identified on the system board
Table 2-2: DIMM Socket Identification
Item Description
DIMM socket 1 populated with standard 128-MB DIMM
DIMM socket 2
DIMM socket 3
DIMM socket 4
CAUTION: Electrostatic discharge can damage electronic components.
Be sure you are properly grounded before beginning any installation
procedure. See “Electrostatic Discharge Information” earlier in this
chapter.
