Removal and Replacement Procedures
2-46 Compaq ProLiant DL360 Server Maintenance and Service Guide
COMPAQ CONFIDENTIAL Codename: MicroMachine Part Number: 169616-006 Last Saved On: 12/31/01 11:05 AM
16. Slide the system board toward the front of the chassis 0.5 inch (1.5 cm), ensuring that the
board unseats from all 46he alignment keys
.
17. Tilt the front edge of the system board upward and lift it off the alignment keys
.
1
2

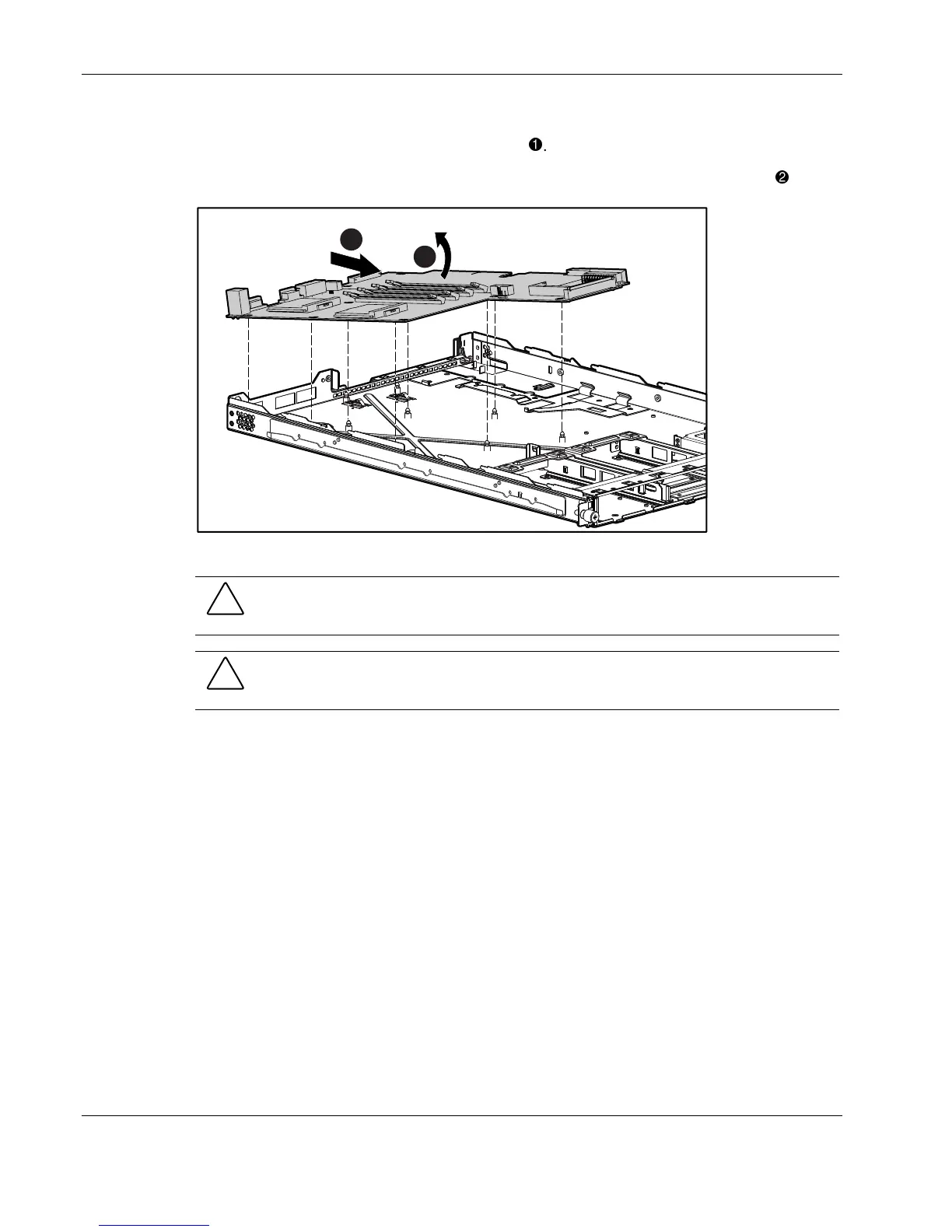

Figure 2-40: Removing the system board
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
CAUTION: Always use a new thermal pad and a new heatsink when replacing processors.
Failure to use new components may result in damage to the processor.
NOTE: Some heatsinks may have an integrated thermal pad. In this case, you will need to remove the
plastic cover to expose the adhesive side of the thermal pad on the new heatsink.
Reverse steps 1 through 17 to replace the system board. When reinstalling the processors on
the new system board, discard the used heatsinks with thermal pads. Reinstall the processors
with the new heatsinks with thermal pads that come in the system board spare parts kit. For
more information, see “Processors” earlier in this chapter.
