Cable Routing Diagrams
Compaq ProLiant DL360 Maintenance and Service Guide 3-3
COMPAQ CONFIDENTIAL Codename: MicroMachines Part Number: 169616-006 Last Saved On: 12/20/01 3:56 PM
Optional Remote Insight Lights-Out Edition Cabling
The following figure identifies the proper cable routing for the Remote Insight Lights-Out
Edition. When installed in the ProLiant DL360 server’s 32-bit expansion slot, the connector
is on the underside of the expansion board.

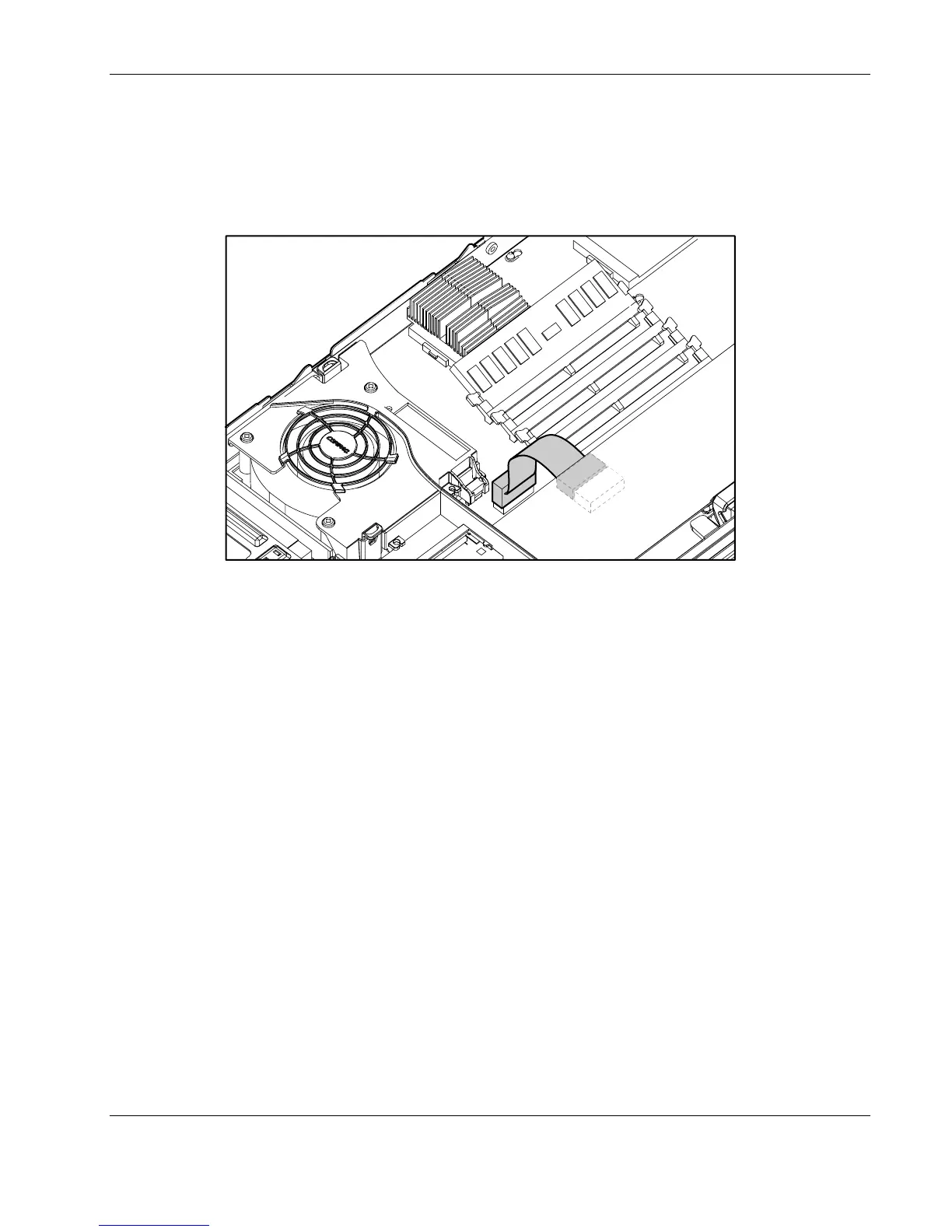

Figure 3-4: Proper cable routing for Remote Insight
Lights-Out Edition
