Removal and replacement procedures 44
o
Remove the server from the rack (on page 31).
4. Remove the access panel ("Access panel" on page 35).

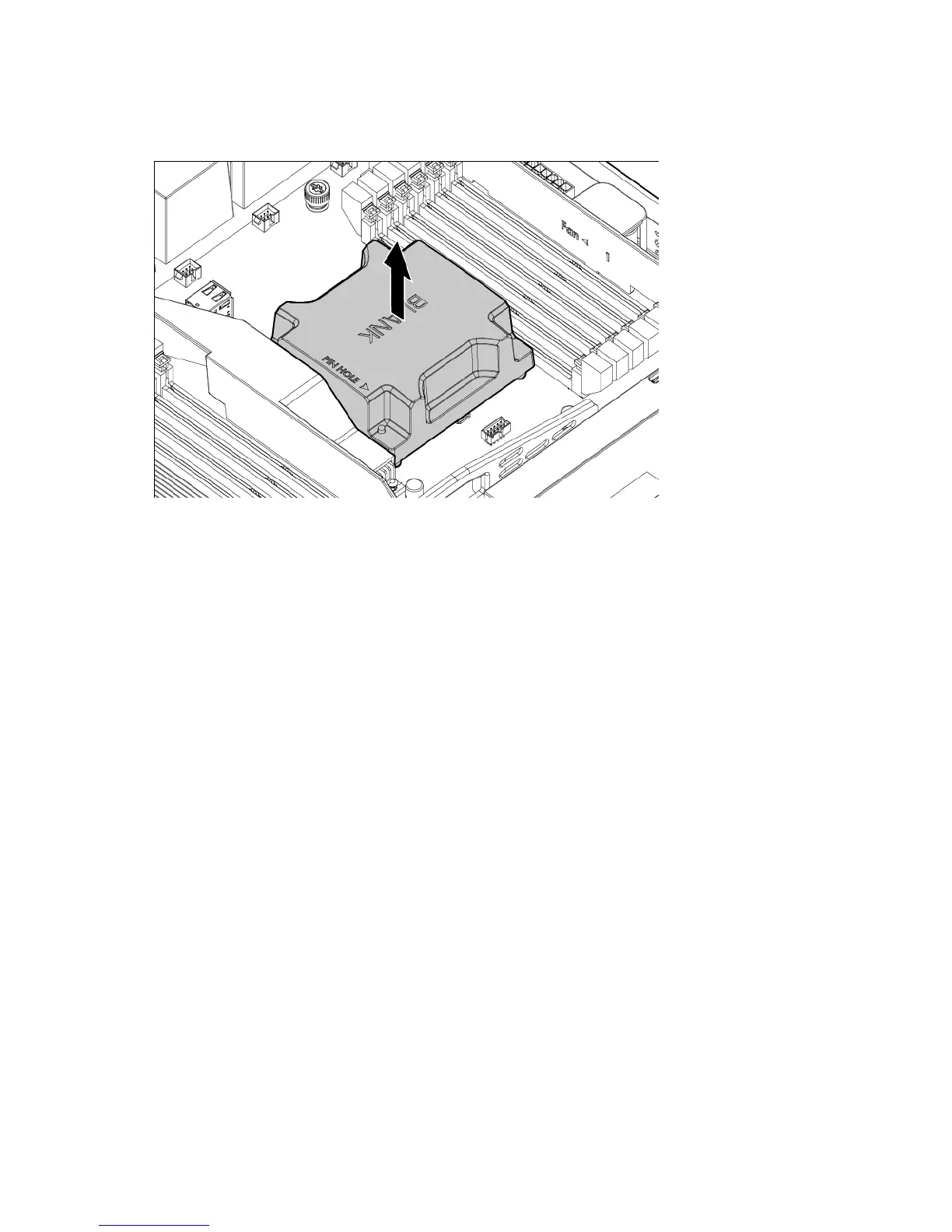

5. Remove the heatsink blank.
To replace the component, reverse the removal procedure.
Heatsink
To remove the component:
1. Power down the server (on page 29).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
o Extend the server from the rack (on page 30).
o Remove the server from the rack (on page 31).
4. Remove the access panel ("Access panel" on page 35).
5. Remove the heatsink:
a. Loosen one pair of diagonally opposite screws halfway, and then loosen the other pair of screws.
b. Completely loosen all screws in the same sequence.
