HP Array Configuration Utility 38

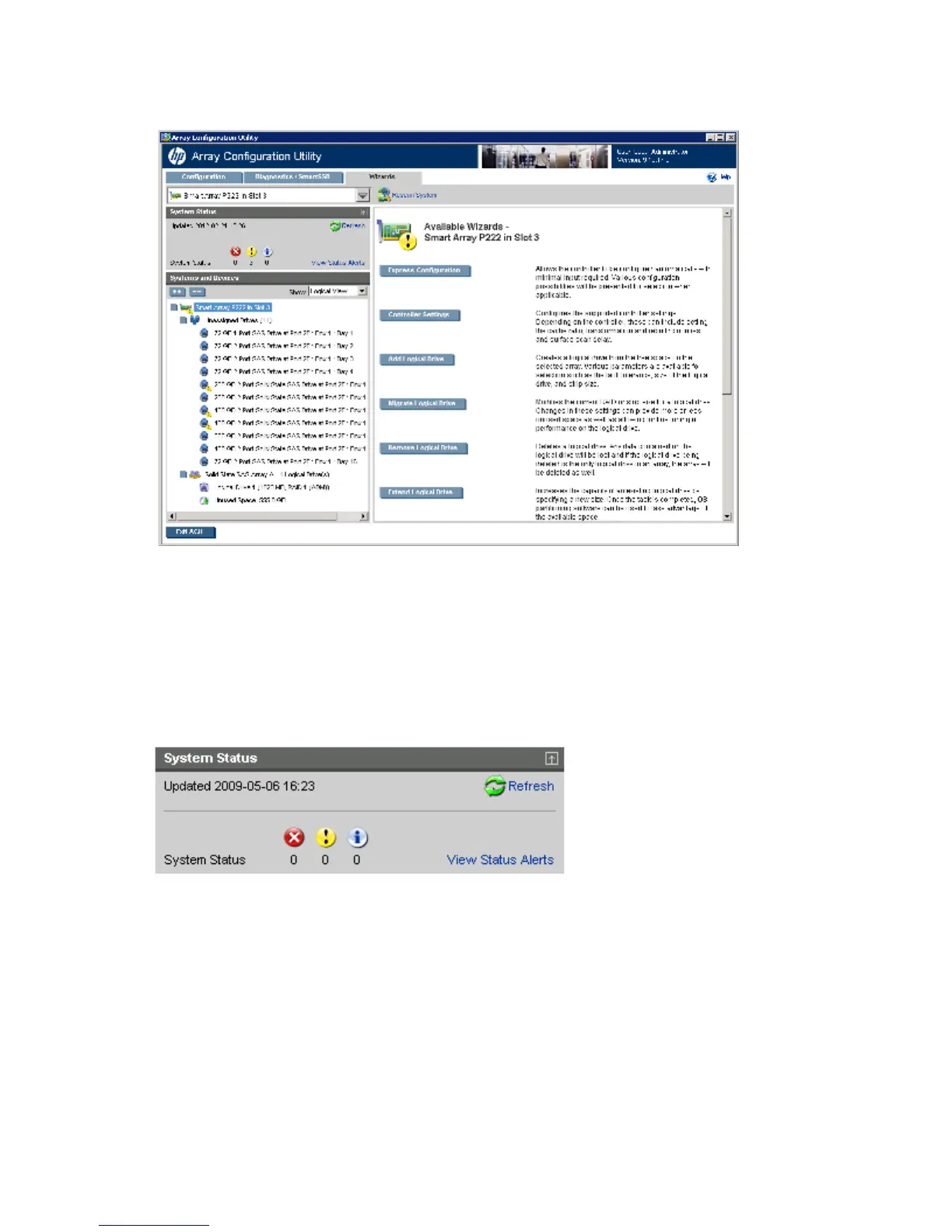

The Wizards screen displays the GUI elements from the Welcome screen and provides status, more detailed
information, and available wizards or options for the selected device.
When a device is selected, the following elements appear:
• System Status—This panel, at left, provides the following information and functionality:
o Date and time stamps for the status
o A Refresh button to refresh the status
o Status icons (critical, warning, and informational) with the number of individual alerts for each
category
o A View Status Alert link that displays device-specific alerts on the right side of the screen
• Systems And Devices—This panel, at left, provides the following information and functionality:
o A tree detailing systems, controllers, arrays, physical drives, and logical drives
o Expand all and collapse all buttons
