90 HP ProLiant DL380 Generation 3 Server Maintenance and Service Guide

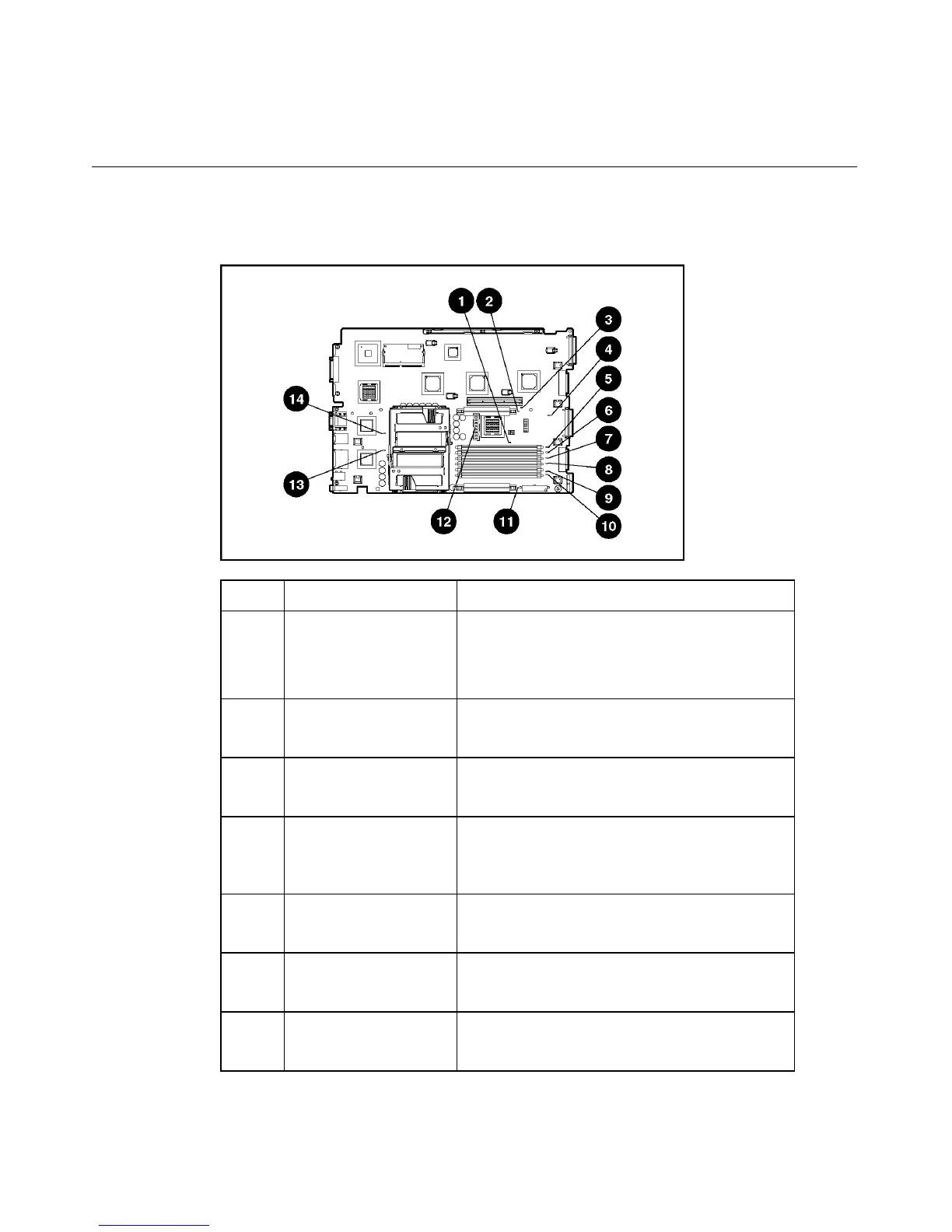

System Board LEDs
Item LED Description Status
1 Online spare memory Amber = Failover, online spare memory in use
Green = Enabled, but not in use
Off = Disabled
2 PPM 2 failure Amber = PPM failed
Off = Normal
3 Riser interlock Amber = PCI riser cage not seated
Off = PCI riser cage is seated
4 Overtemperature Amber = Cautionary or critical temperature
level detected
Off = Temperature OK
5 DIMM 6C failure Amber = Memory failed
Off = Normal
6 DIMM 5C failure Amber = Memory failed
Off = Normal
7 DIMM 4B failure Amber = Memory failed
Off = Normal
