To replace the component, reverse the removal procedure.
Systems Insight Display
To remove the component:
1. Power down the server (on page 26).
2. Extend the server from the rack (on page 25).
3. Remove the access panel ("Access panel" on page 30).
4. Remove the PCI riser cage ("PCI riser cage" on page 38).
5. Remove the air baffle ("Air baffle" on page 39).
6. Disconnect the Systems Insight Display cable.

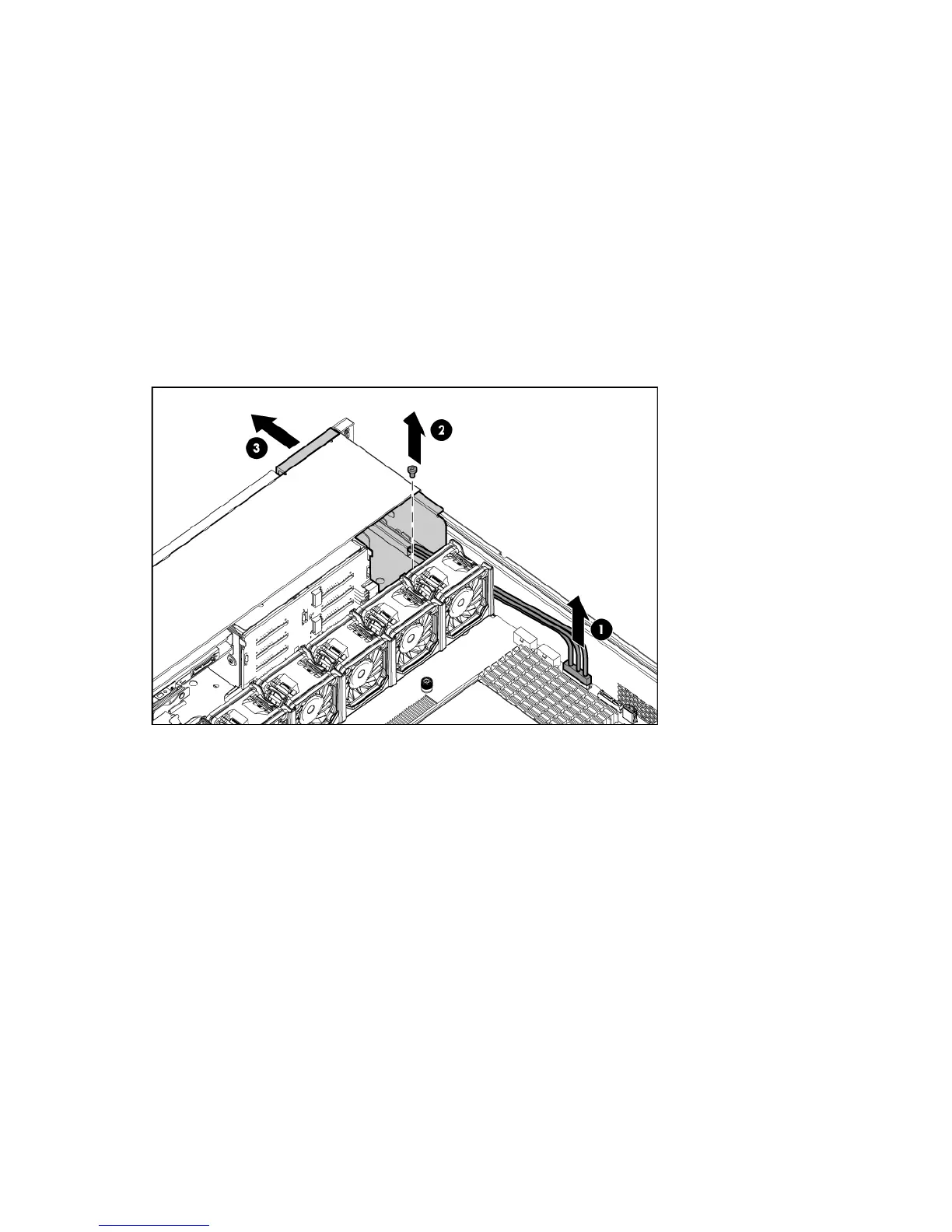

7. Remove the Systems Insight Display.
To replace the component, reverse the removal procedure.
Front right bezel
To remove the component:
1. Extend or remove the server from the rack ("Extend the server from the rack" on page 25, "Remove
the server from the rack
" on page 27).
Removal and replacement procedures 33
