4.
Remove the PCI riser cage ("PCI riser cage" on page 38).
5. Remove the air baffle ("Air baffle" on page 39).

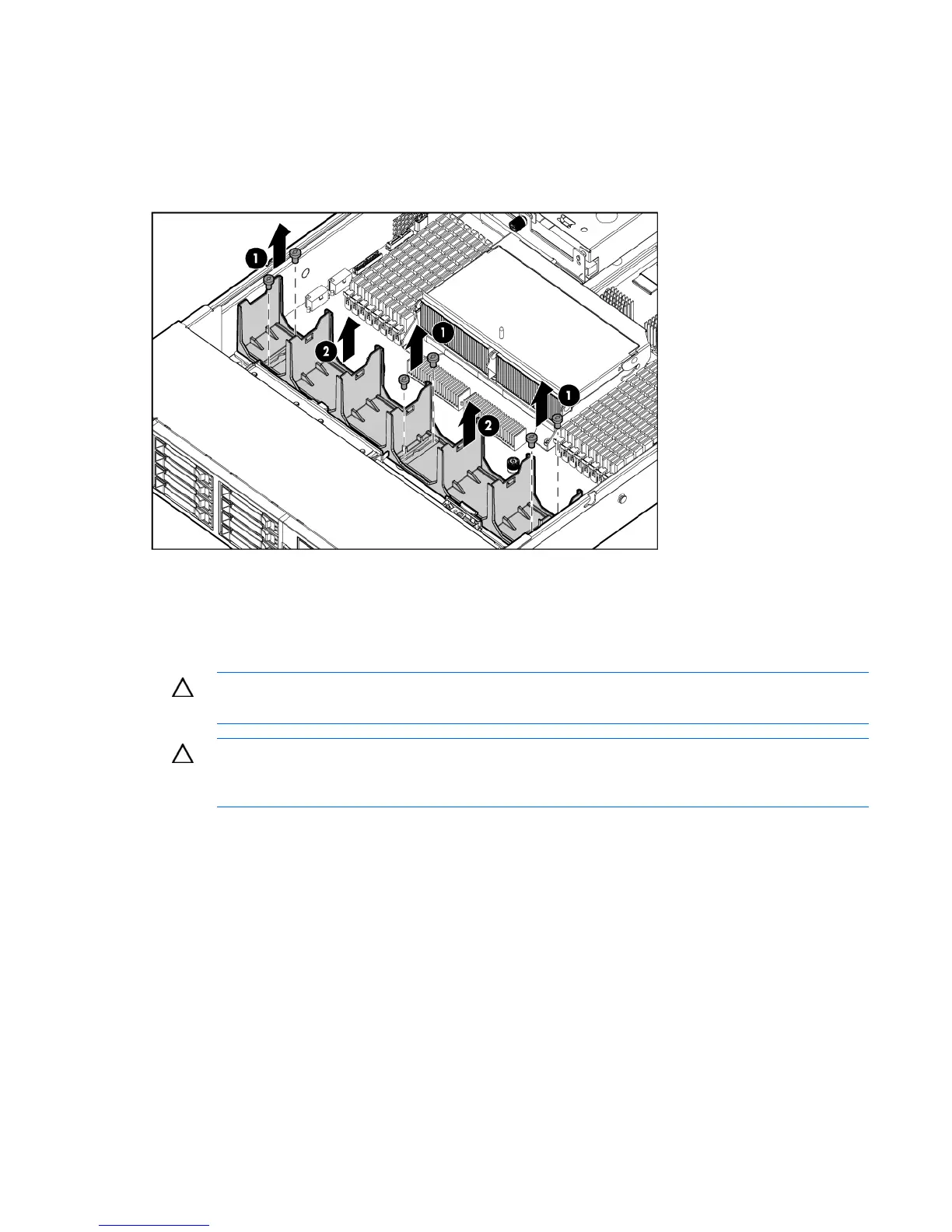

6. Remove the fan blanks.
7. Remove the fans ("Hot-plug fan" on page 36).
8. Remove the fan cage.
ce th
is d p
Expan
To repla e component, reverse the removal steps and press down on the top of each fan to be sure it
roperly. seate
sion slot covers
r expansion boards, power down the server and
remove all AC power cords before removing or installing the PCI riser cage.
CAUTION: To prevent damage to the server o
CAUTION: For proper cooling do not operate the server without the access panel, baffles,
er supports hot-plug components, minimize expansion slot covers, or blanks installed. If the serv
the amount of time the access panel is open.
1. Power down the server (on page 26).
2. Extend the server from the rack (on page 25).
3. Remove the access panel ("Access panel" on page 30).
4. Remove the PCI riser cage ("PCI riser cage" on page 38).
5. Remove the expansion slot cover:
Removal and replacement procedures 40
