Notes:
• "Primary" denotes the risers are installed in the primary riser connector.
• "Secondary" denotes the risers are installed in the secondary riser connector.
• FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height. LP denotes low profile.
• The PCIe x16 riser supports a maximum power of 225W with an HP power cable. This cable must
be used for PCIe card wattages greater than 75W.
System board

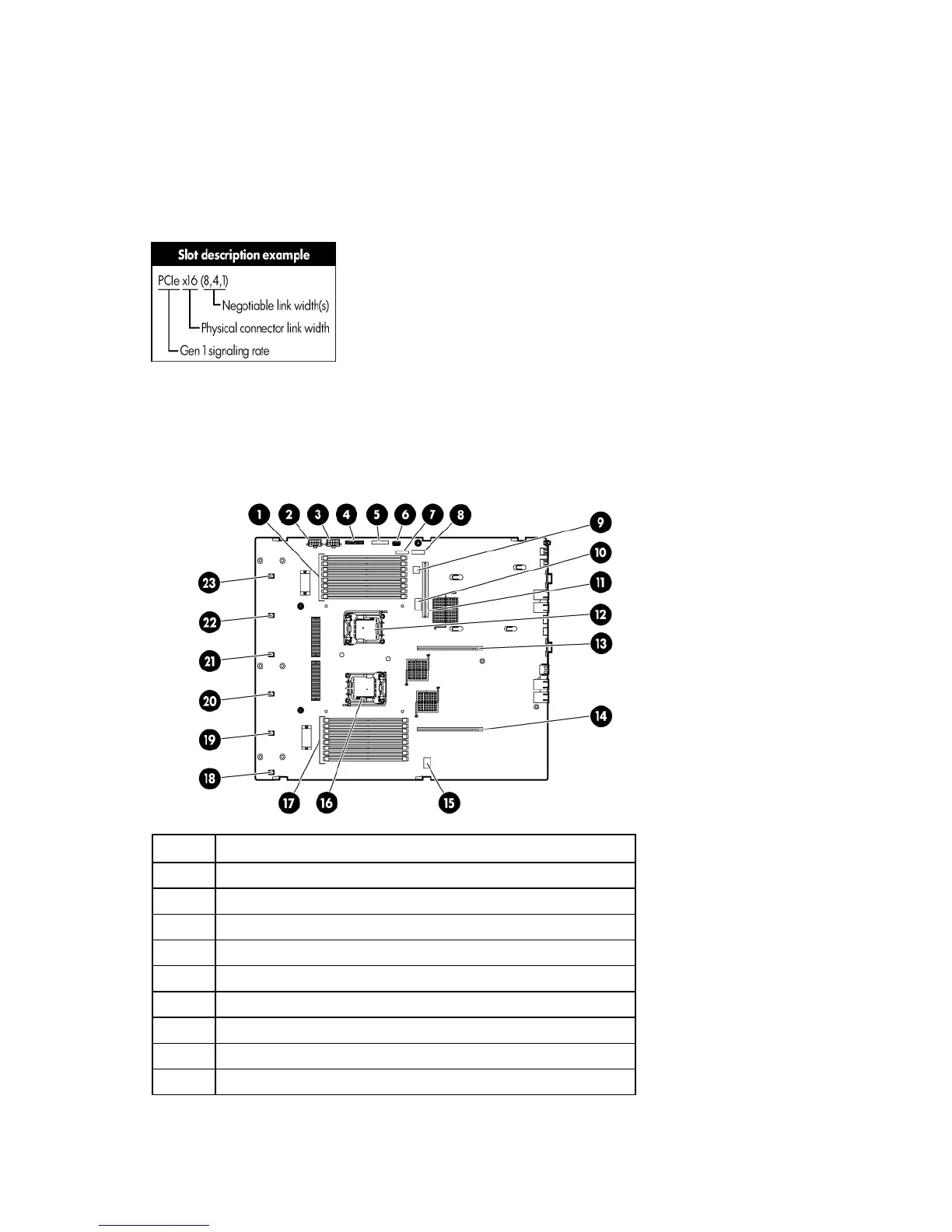

System board components
Item Description
1 Processor 1 DIMM slots
2 Primary SAS power connector
3 Secondary SAS power connector
4 Front I/O connector
5 SATA optical drive connector
6 USB connector
7 System battery connector
8 TPM connector
9 NMI jumper
Component identification 74
