Removal and replacement procedures 50
To replace the component:

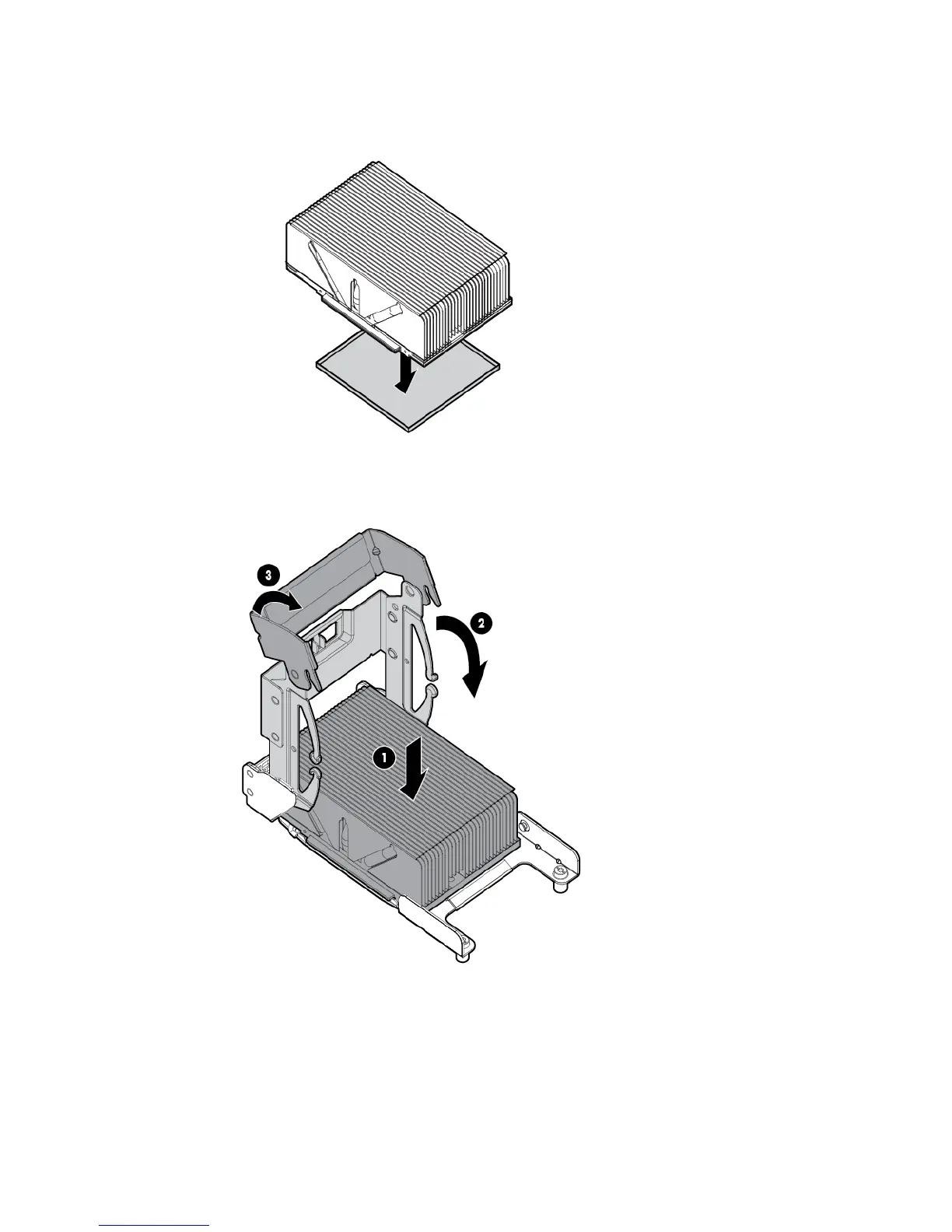

1. Remove the thermal interface protective cover from the heatsink.
2. Install the heatsink.
3. Install the air baffle ("Air baffle" on page 29).
4. Install the access panel ("Access panel" on page 29).
5. Slide the server into the rack.
6. Connect each power cord to the server.
7. Connect each power cord to the power source.
