6. ODD cable routing.

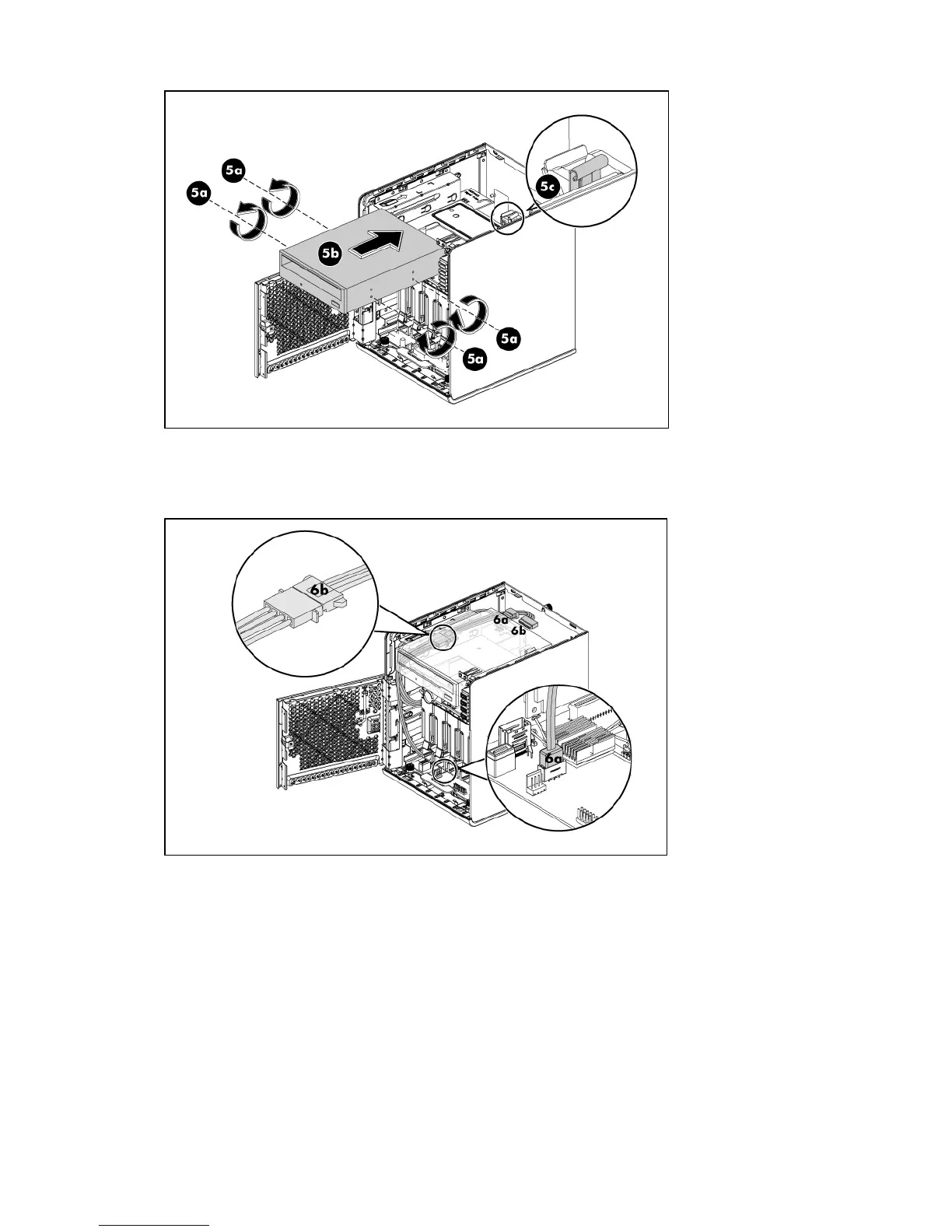

6a. ODD cable connects ODD to the system board ODD connector (J24).
6b. PATA connector connects SATA ODD cable to the power cable P6.
7. After installing the ODD module and connecting the ODD cables, slide the top panel to reinstall
it into the chassis.
8. Fasten the back screw to secure the top panel on the chassis
9. Close the panel door of the server.
10. Use the HP ProLiant MicroServer’s key to lock the panel door.
