HP ProLiant ML110 G5 - DL585 G2 Rear Panel; DL585 G2 Rear Panel Components

StatusDescriptionItem
Green = Linked to network
Flashing green = Linked with activity on the network
Off = No network connection
NIC 2 link/ activity LED17
Amber = System has AC power and is in standby mode
Green = System has AC power and is turned on
Off = System has no AC power
Power on/Standby button and LED18
N/AProcessor memory module19
1 2
13 12 11 10 9 8 7 6 5
3 4
1716
15
14

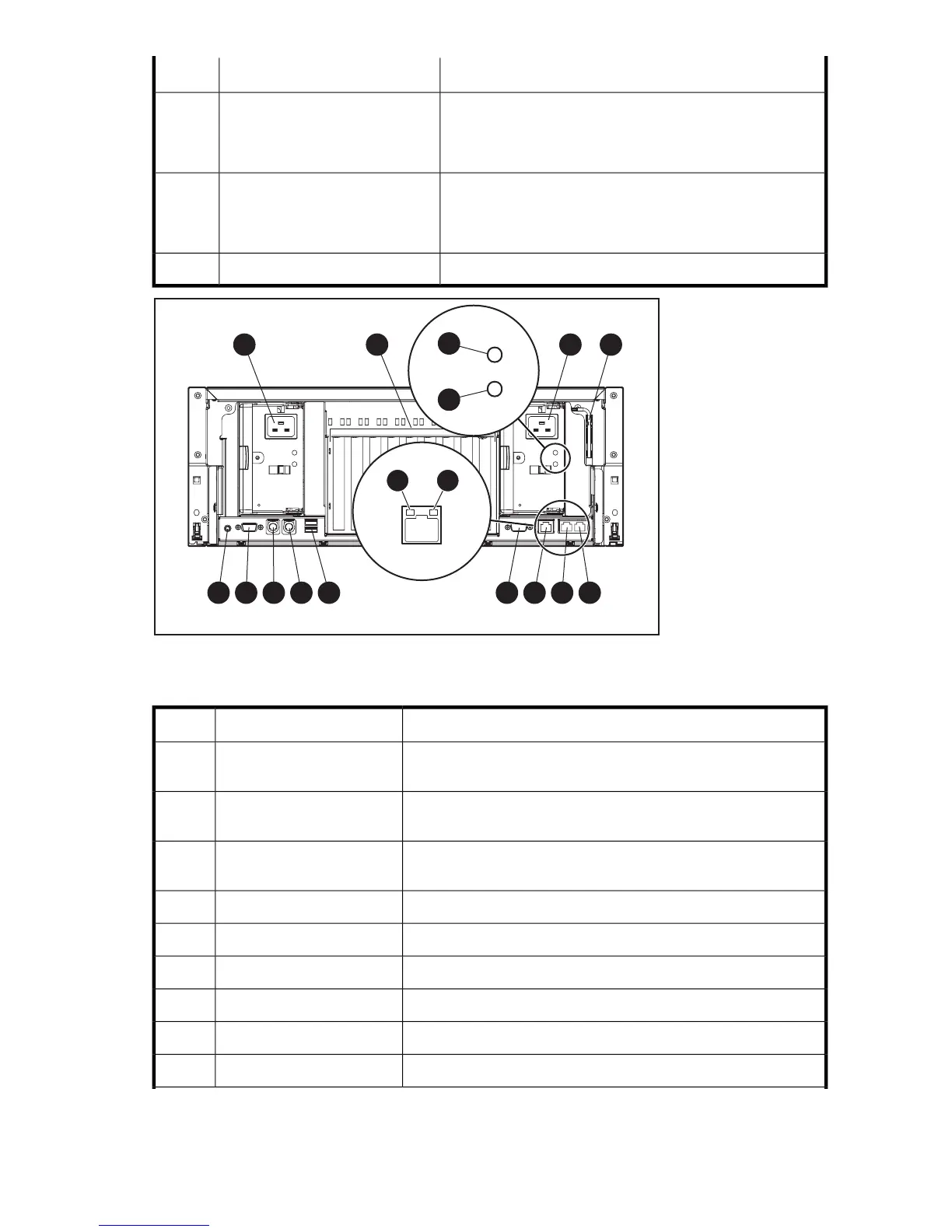

Figure 13 DL585 G2 rear panel
Table 16 DL585 G2 rear panel components
StatusDescriptionItem
N/A
Redundant hot-plug power
supply (optional)
1
N/A
PCI Express and PCI-X
non-hot-plug expansion slots
2
N/A
Hot-plug power supply
(primary)
3
N/AT-15 Torx screwdriver4
N/ANIC connector 25
N/ANIC connector 16
N/AiLO 2 connector7
N/ASerial connector8
N/AUSB connectors (two)9
