Connectors, switches, and LEDs 100
Connectors, switches, and LEDs
Connectors and components

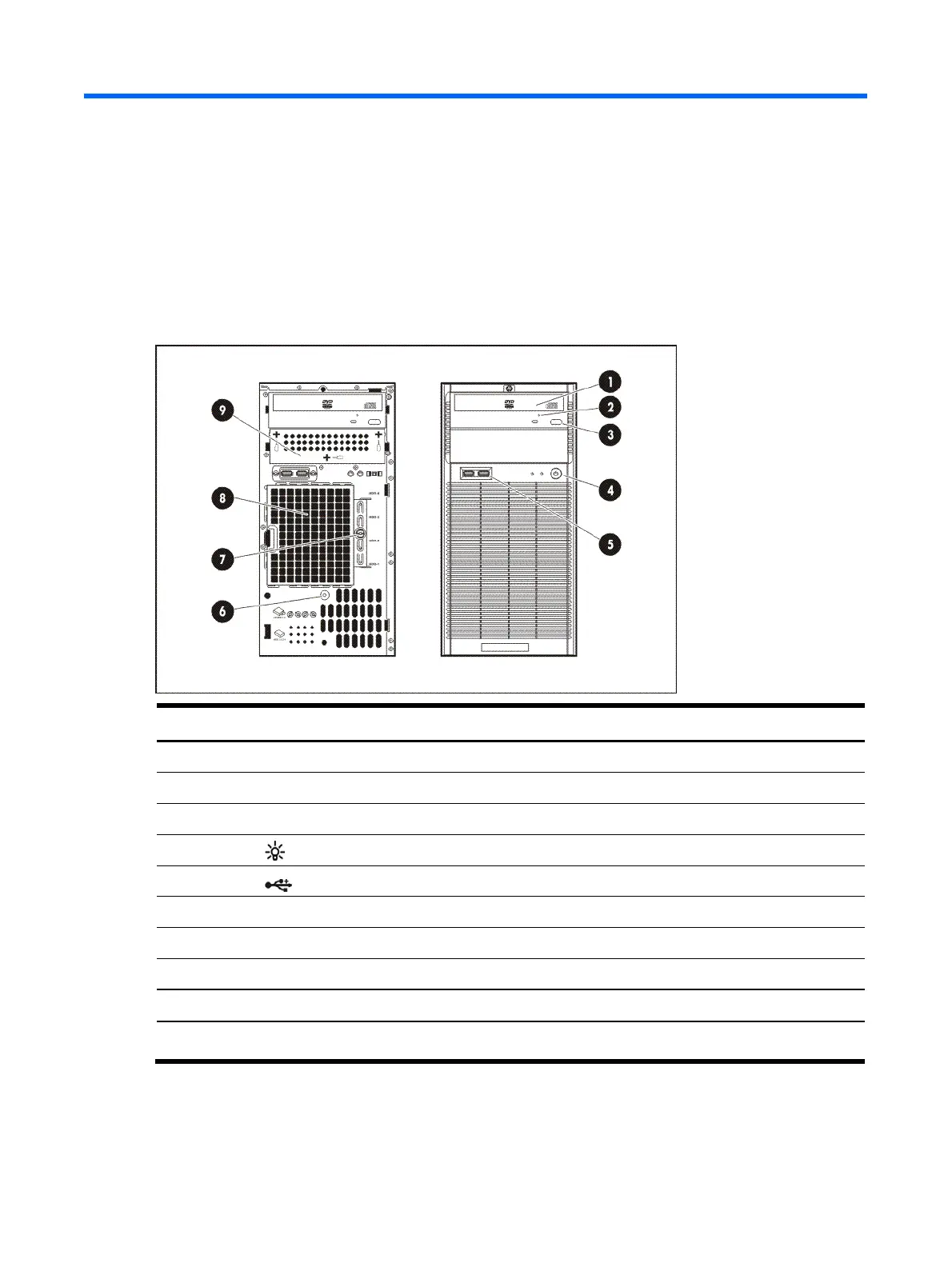

Front panel
Item Icon Component
1 Optical disc drive (ODD)
2 ODD manual eject hole
3 ODD eject button
4
Power button
5
Front USB 2.0 ports
6 External ambient thermal sensor
7 HDD EMI shield thumbscrew
8 HDD EMI shield
9 Second removable media drive bay EMI shield
NOTE: The location of items 2 and 3 may vary depending on the model of the installed removable media drive.
