Removal and replacement procedures 41
4.

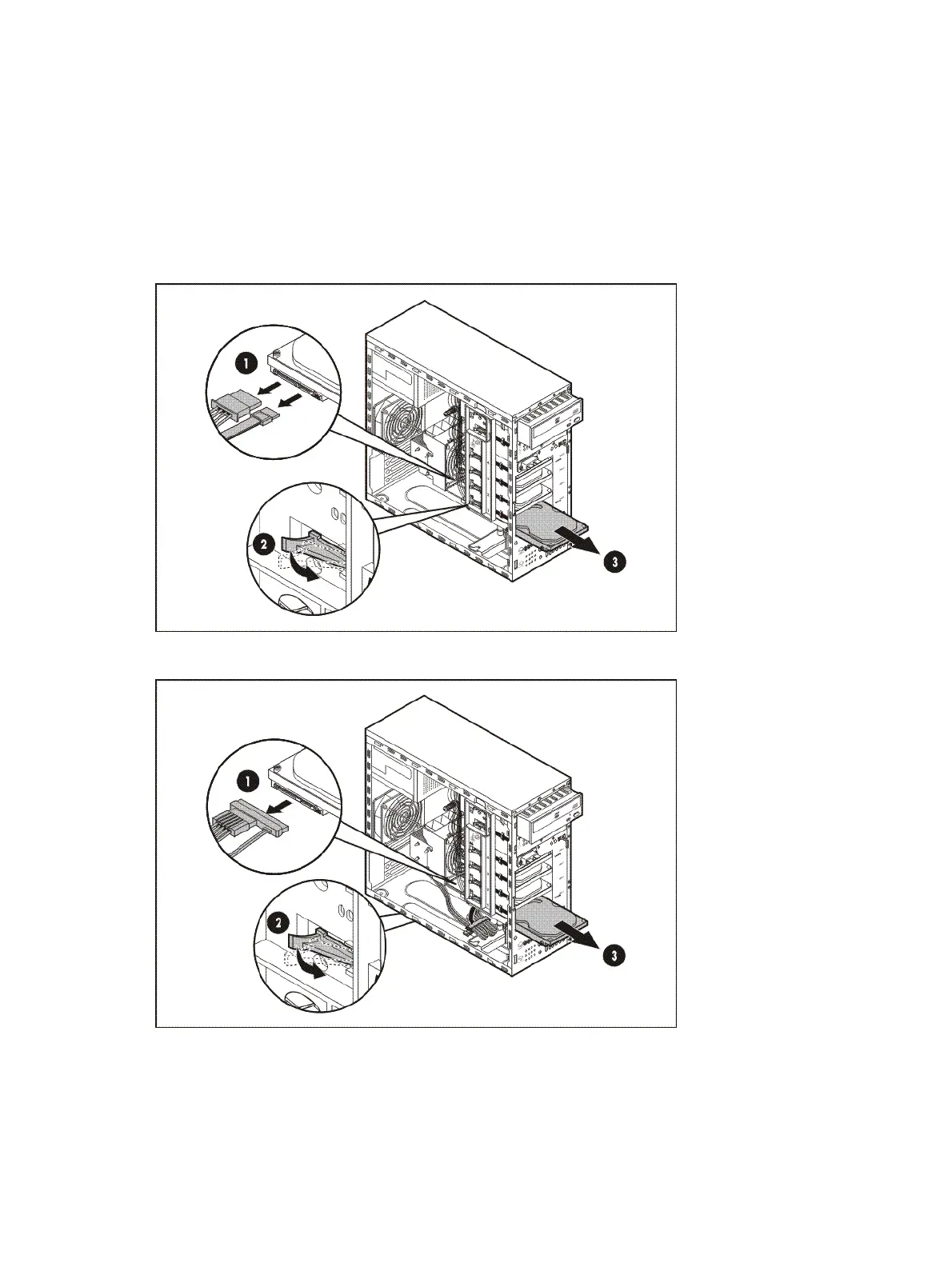

Remove the hard drive you intend to replace.
a. For a SATA drive, disconnect the power and data cables from the back of the installed drive
(
1).
For a SAS drive, disconnect the SAS HDD cable from the back of the installed drive.
b. Pull and hold the corresponding drive release tab (2).
c. Slide the hard drive from the drive bay (3).
SATA drive
SAS drive
