Memory
The HP ProLiant ML110 Generation 3 server has four DIMM slots that support up to 8 GB maximum system
memory (2 GB in each of the four DIMM slots).

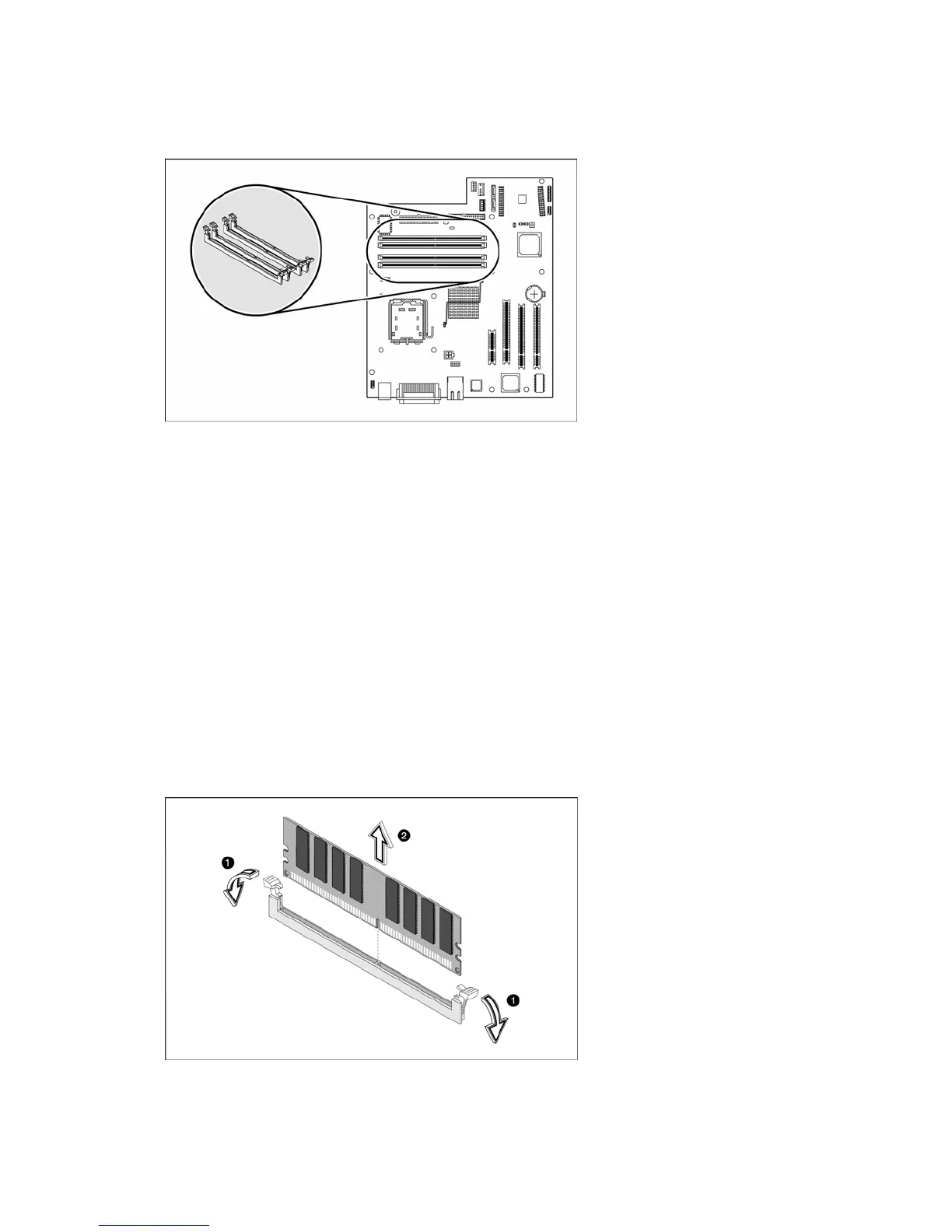

Figure -25 [DIMM slots]
Guidelines for installing memory modules
You must adhere to the following guidelines when adding or replacing memory modules:
• Use PC2-4200 unbuffered ECC DDRII DIMMs.
• DIMM sizes supported are 512 MB, 1 GB, and 2 GB, allowing up to a total of 8 GB maximum system
memory capacity.
• Supported DIMM configurations are single DIMM, one pair (two DIMMs), or two pairs (4 DIMMs).
• For optimal two-DIMM configuration, populate slot 1 and slot 3. Identical DIMMs are recommended.
To remove a memory module:
1. Perform steps 1 through 3 of the Pre-installation instructions.
2. Remove the access panel.
3. Lay the server on its side with the open side facing up.
4. If necessary, remove any accessory boards or cables that prevent access to the memory slots.
5. Locate and remove the memory module:
a. Disengage the latch socket at both ends of the DIMM sockets.
b. Gently pull the memory module upward to remove it from the socket.
Figure -26 [Removing a memory module]
6. Place the memory module on a static-dissipating work surface or inside of an anti-static bag.
To install a memory module:
a. Locate an empty memory socket on the system board.
b. Remove the memory module from its protective packaging, handling only the edges of the module.
