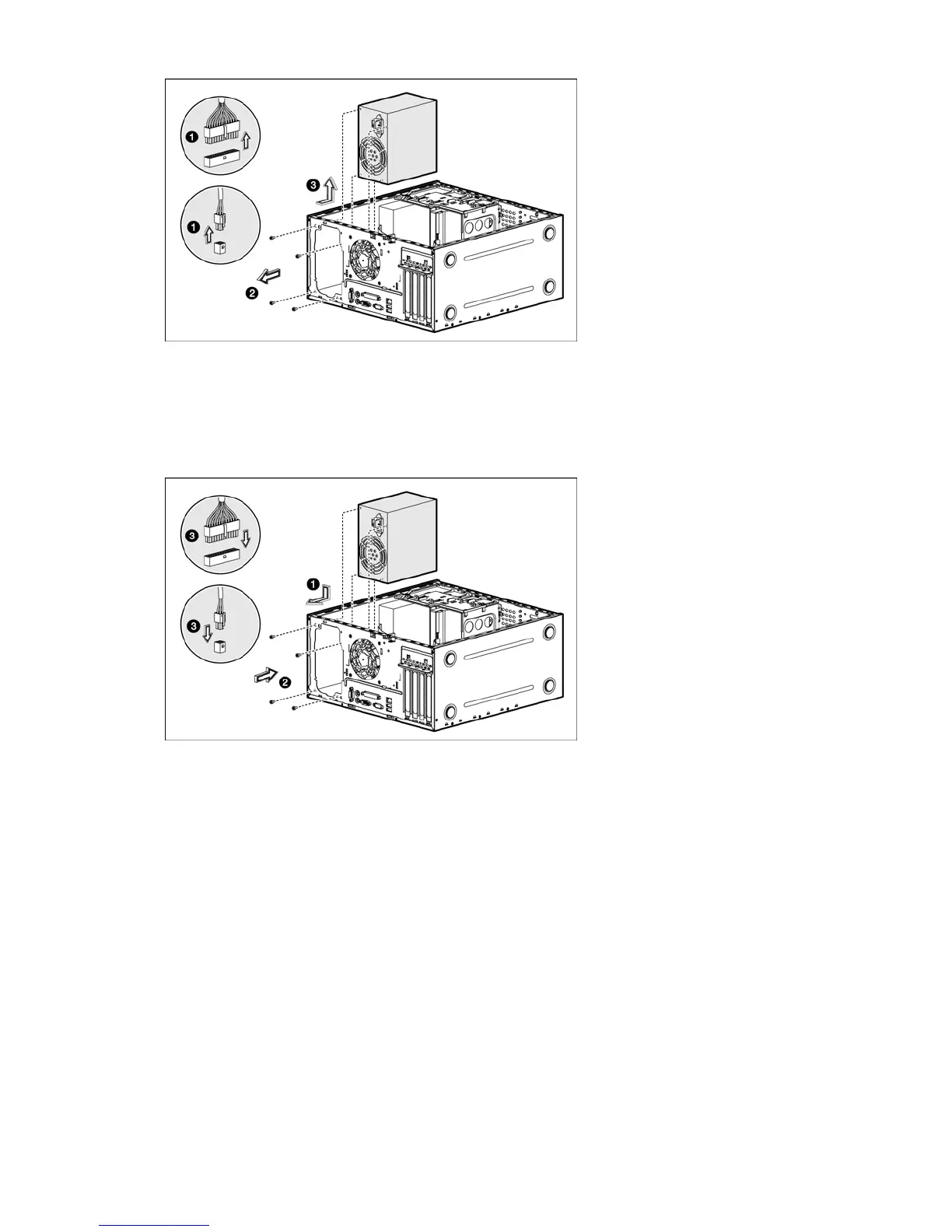

Figure -34 [Removing the PSU]
5. Install a new PSU:
a. Align the new PSU to the support edges inside of the chassis.
b. Secure the PSU to the chassis using four screws.
c. Reconnect the processor and system board power cables to the system board connectors (P1 and P2),
and then connect the power cables to all installed drives.
Figure -35 [Installing a PSU]
6. Observe the post-installation procedures.
