System fan
A new system fan can be installed to allow the server to operate properly in case the default system fan becomes
defective.
To replace the system fan:
1. Perform steps 1 through 3 of the Pre-installation instructions.
2. Remove the access panel.
3. Remove the system fan:
WARNING! Be sure to support the system fan with your hand when removing screws from the chassis.
The fan could fall onto the system board or an accessory board causing damage if not supported.
a. Disconnect the system fan cable from its connector (P8) on the system board.
b. Remove the four screws from the rear of the chassis that secure the fan.
c. Remove the fan from the chassis.

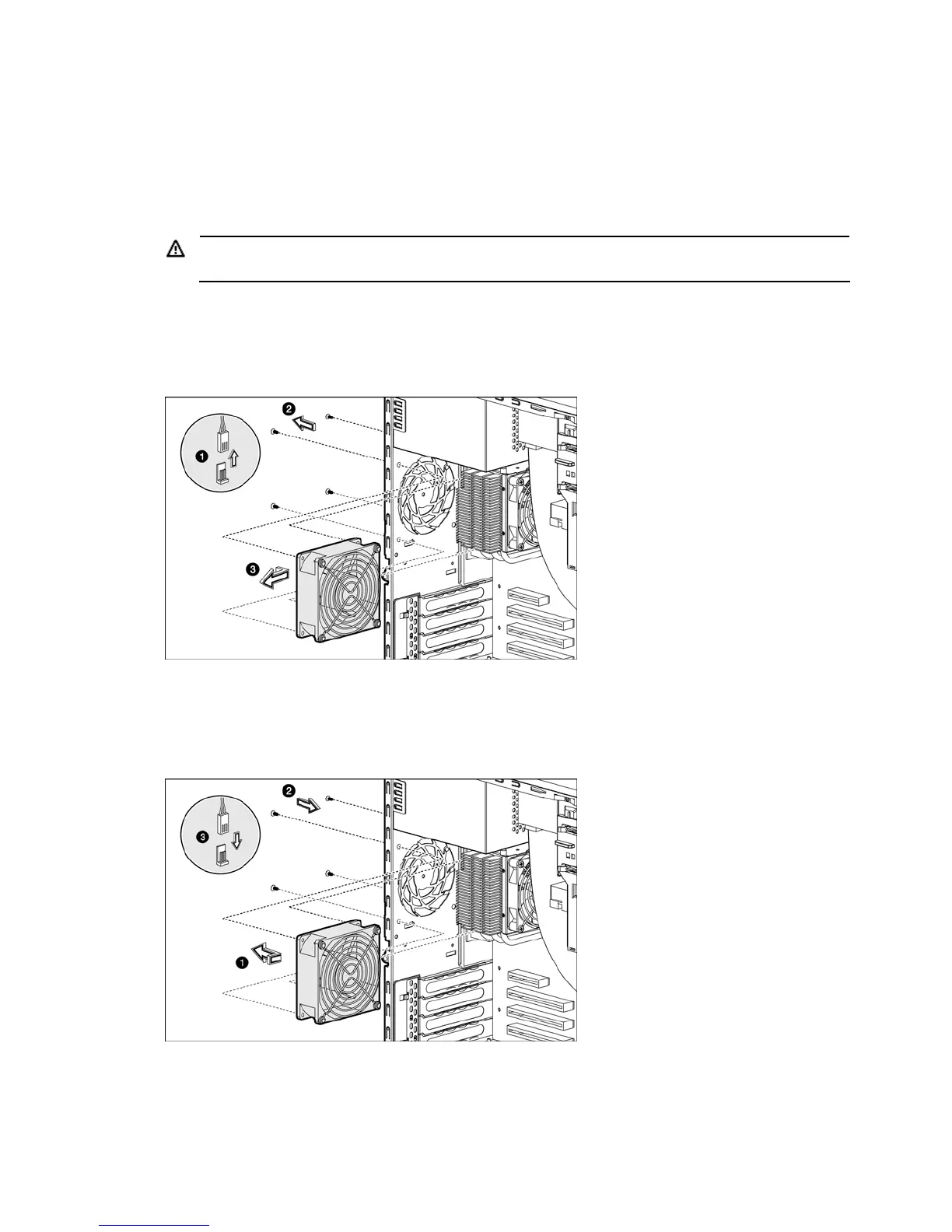

Figure -36 [Removing the system fan]
4. Install a new system fan:
a. Align the new fan to the screw holes inside of the chassis
b. While holding the new fan against the chassis, secure the fan to the chassis with four screws.
c. Connect the system fan cable to its connector (P8) on the system board.
Figure -37 [Installing a system fan]
5. Observe the post-installation procedures.
