HP ProLiant ML110

Addendum - SATA Configuration
a. Disconnect the power, data, and LED cables connected to the hot-plug cage
backplane.
b. Press the hard disk carrier button to release the carrier latch.
c. Rotate the carrier latch outward.
d. Hold the carrier latch, and then pull out the carrier from the cage to release it.
e. Slide the carrier out from the cage.

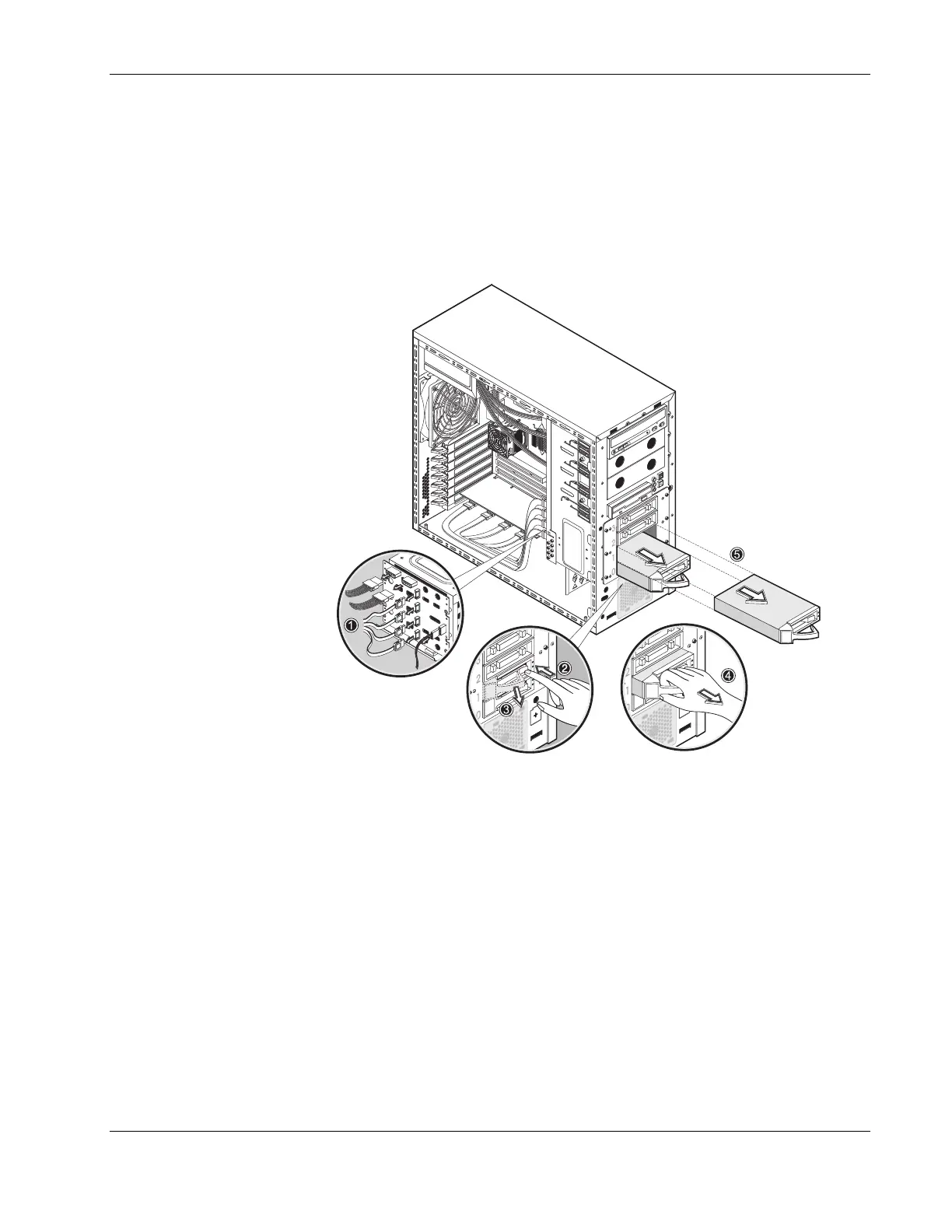

Figure 8-2: Removing the hot-plug HDD
5. Remove the HDD cage from the server
a. Remove the six Torx screws that secure the cage to the chassis.
Keep the screws for reinstalling the cage later.
b. Gently slide out the cage from the chassis.
HP ProLiant ML110 Server Operations and Maintenance Guide 8-3
