HP ProLiant ML310e Gen8 v2 User Manual

Component identification 10

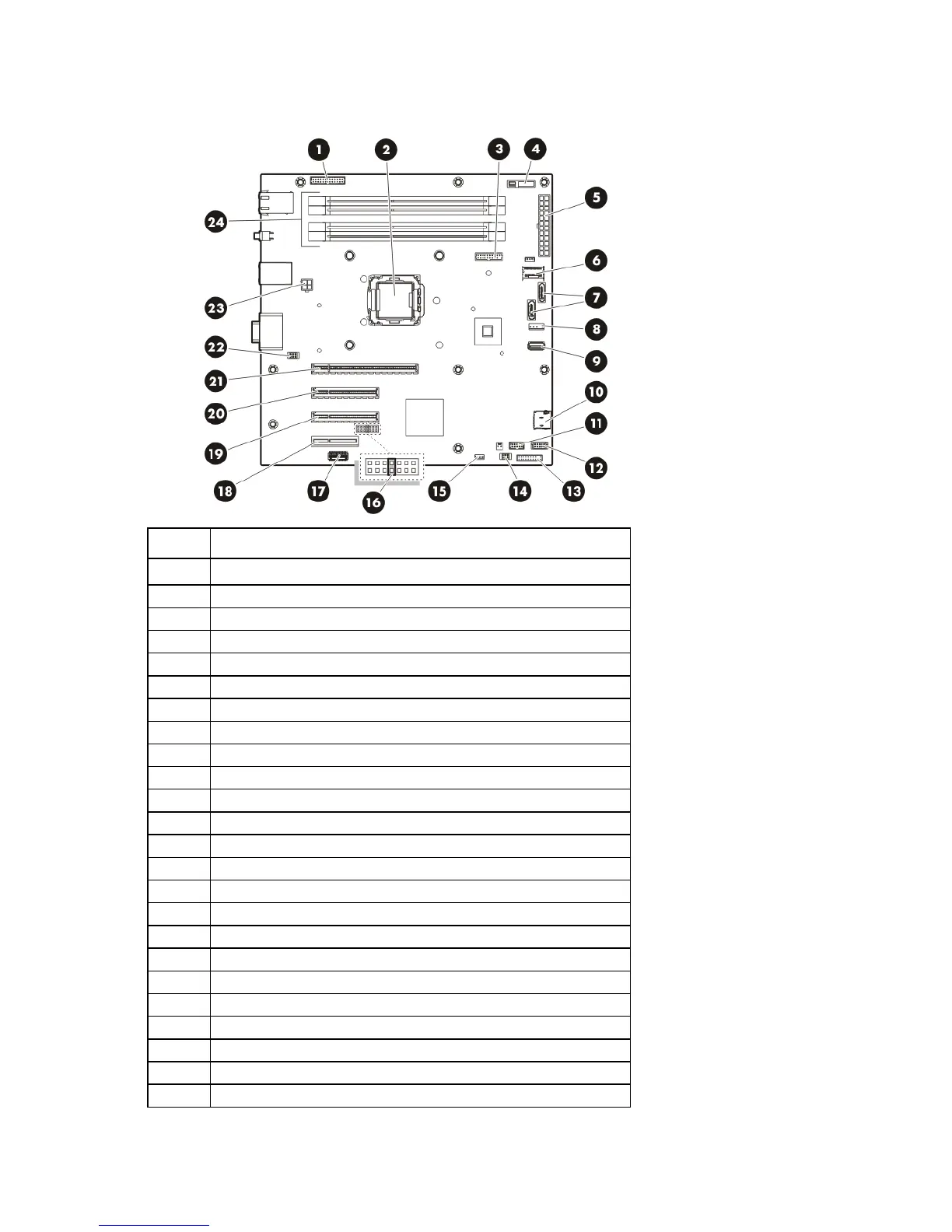

System board components
Item Description
1
RPS connector
2
Processor socket
3
TPM connector
4
System battery
5
24-pin power supply connector
6
Mini-SAS connector
7
SATA connectors
8
Internal USB cable connector
9
Internal USB connector
10
Micro SD card slot
11
Front USB connector 2
12
Front USB connector 1
13
Front panel connector
14
Front system fan connector (fan 2)
15
Ambient thermal sensor connector
16
NMI header
17
System maintenance switch
18
Slot 1 PCIe2 x4 (1)*
19
Slot 2 PCIe2 x8 (1)*
20
Slot 3 PCIe3 x8 (8, 4, 1)*
21
Slot 4 PCIe3 x16 (8, 4, 1)*
22
Rear system fan connector (fan 1)
23
4-pin power supply connector
24
DIMM slots

HP ProLiant ML310e Gen8 v2 Specifications

General

Product Type	Server
Form Factor	Tower
Processor Sockets	1
Chipset	Intel C222
Memory	Up to 32 GB DDR3
Memory Slots	4 DIMM slots
Storage Controller	HP Dynamic Smart Array B120i
Processor	Intel Xeon E3-1200 v3
Storage	3.5-inch or 2.5-inch drives
Maximum Internal Storage	Up to 16 TB
Network	Gigabit Ethernet
Expansion Slots	1 x PCIe 3.0 x16, 1 PCIe 2.0 x4
Power Supply	300W
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
RAID Support	RAID 0, 1, 5, 10
