HP ProLiant ML330 Generation 3

Removal and Replacement Procedures
Air Baffle
To remove the component:
1. Power down the server. Refer to “System Power Down” in this chapter.
2. Remove the front bezel. Refer to “Front Bezel” in this chapter.
3. Remove the access panel. Refer to “Access Panel” in this chapter.

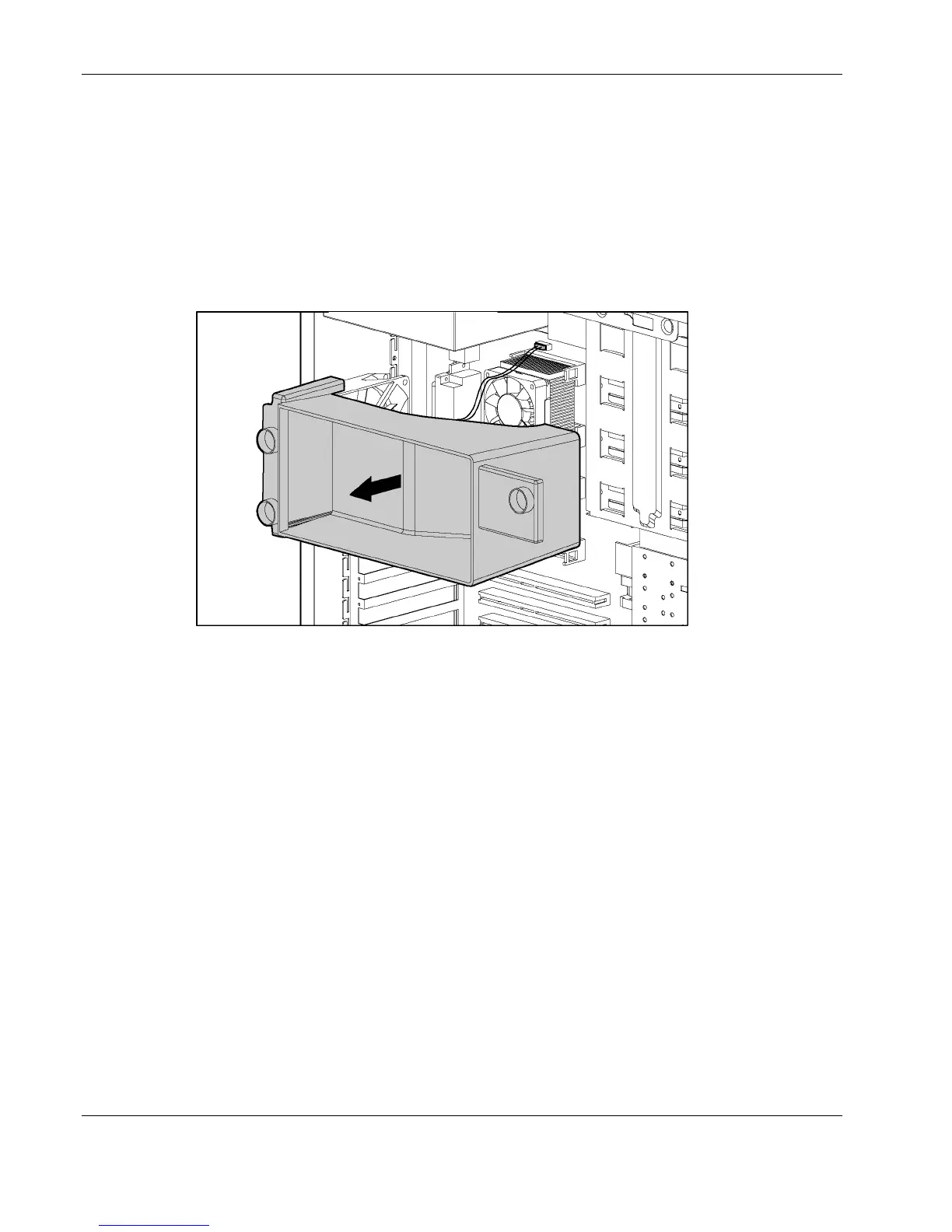

4. Remove the air baffle.
To replace the component, reverse the removal procedure.
