HP ProLiant ML330 Generation 3

Component Identification

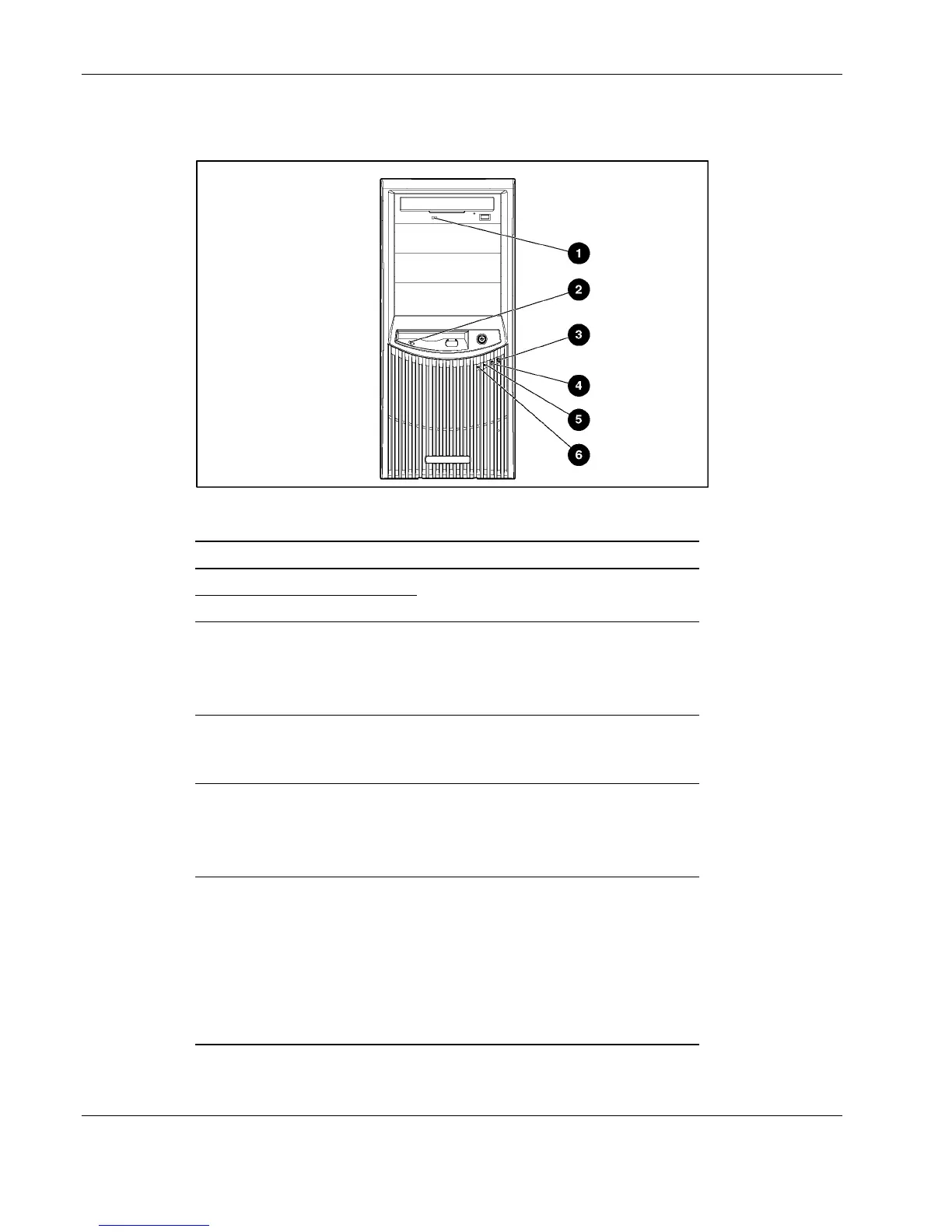

Front Panel LEDs
Table 4-2: Front Panel LEDs
Item LED Description Status
1 CD-ROM drive activity
2 Diskette drive activity
On = Drive activity exists.
Off = No drive activity exists.
3 System power Green = Server is on.
Amber = Server is in standby mode.
Off = Server is off; power cord is
disconnected.
4 Hard drive activity Green or flashing green = Hard drive
activity exists.
Off = No hard drive activity exists.
5 NIC link/activity Green = Network link exists.
Flashing green = Network activity exists.
Off = No network link exists or server in
standby.
6 Internal health Green = Server is powered up and server
health is good.
Amber = Server health is degraded; a
pre-failure warning exists.
Red = Server health is critical; attention is
required.
Off = Server is off; power cord is
disconnected.
