Installing a 2.5-inch hard disc drive

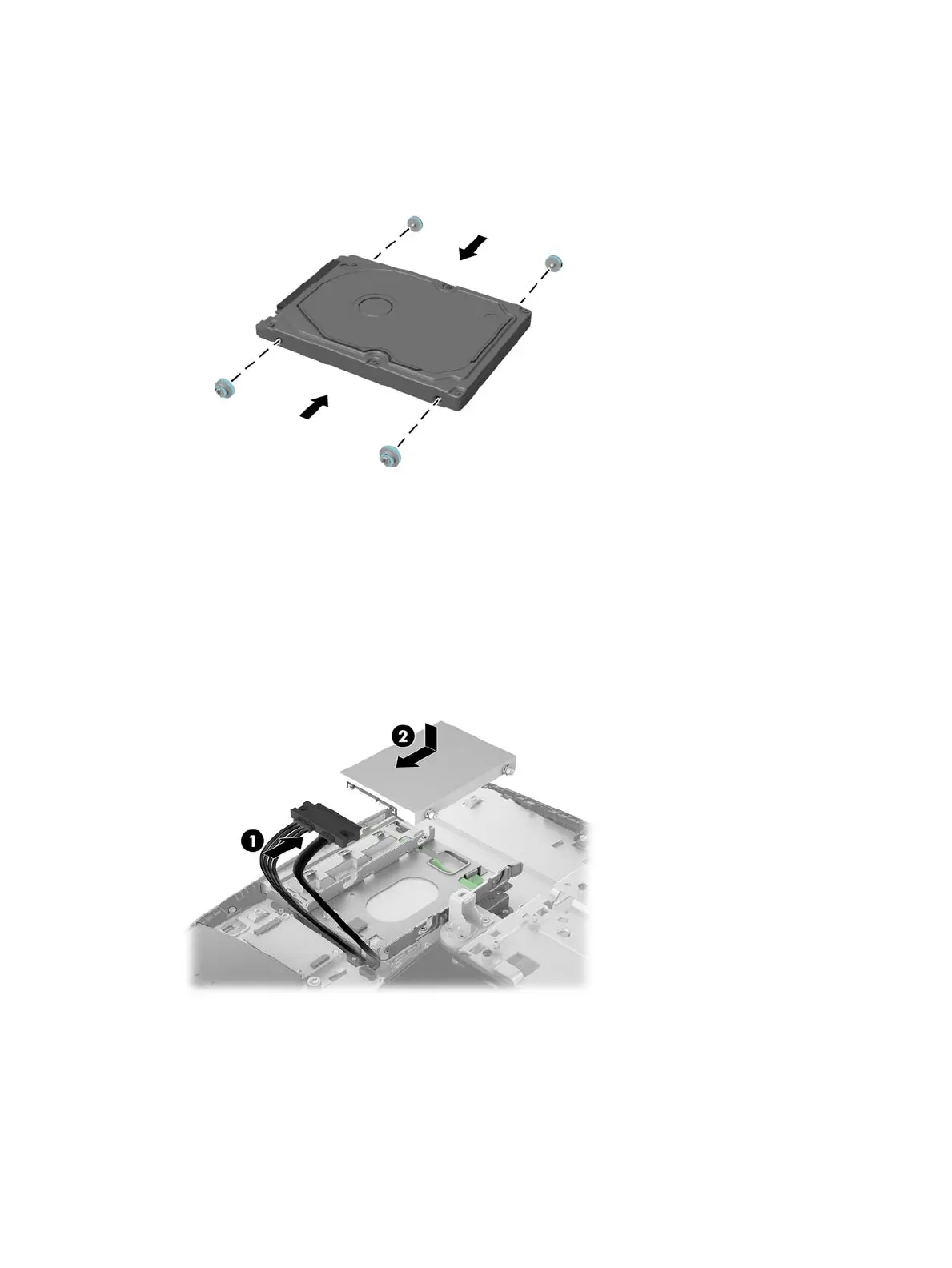

1. Fasten four mounting screws with grommets onto the new 2.5 inch hard drive.
2. Position the hard drive above the drive cage with the connectors facing the power and data cables.
3. Connect the power and data cables to the hard drive (1).
4. Place the hard drive into the drive cage and slide it rmly away from the edge of the computer (2) until
the hard drive snaps into place.
Be sure that the hard drive latch has moved back into place to cover the grommet on the side of the hard
drive.
