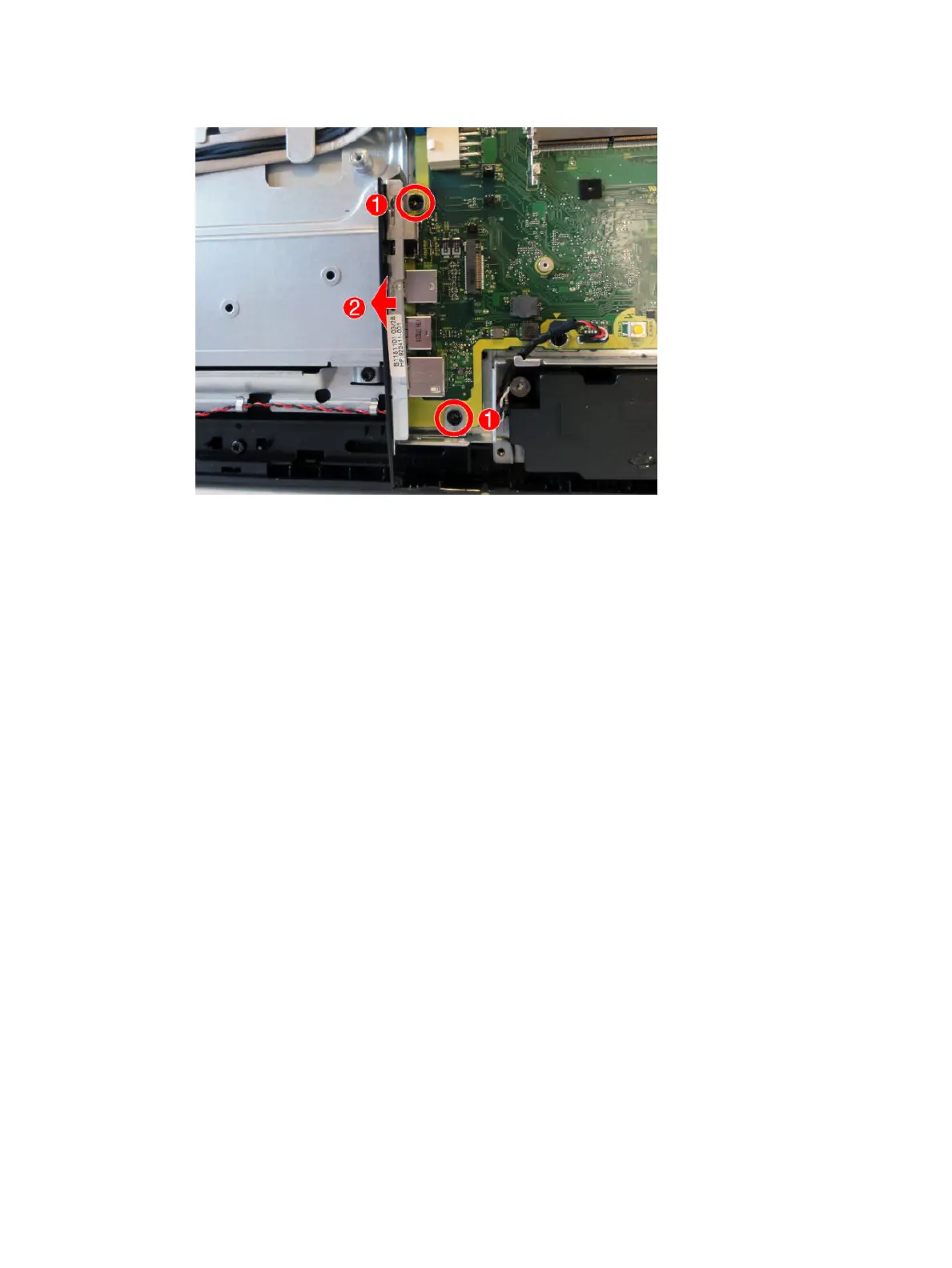

11.
Remov
e the two screws
(1)
tha
t secure the I/
O brack
et, and then lift it
o
the computer
(2)
.
T
o replac
e the feet, re
ar I/O br
acket, and bo
ttom panel, re
verse the remov
al procedur
es.
Feet, r
ear I/
O brack
et, and bottom panel
