Installing the Optional Port Cover
The computer can support an optional rear port cover that can be installed to hide the rear ports and
cables. The doors on top of the port cover can be opened and snapped back to allow room for a
security lock if one is attached to the rear of the computer. To install the port cover:
1. If there is a security lock attached to the rear of the computer, open the appropriate door on the
top of the port cover and snap it back to make room for the security lock.

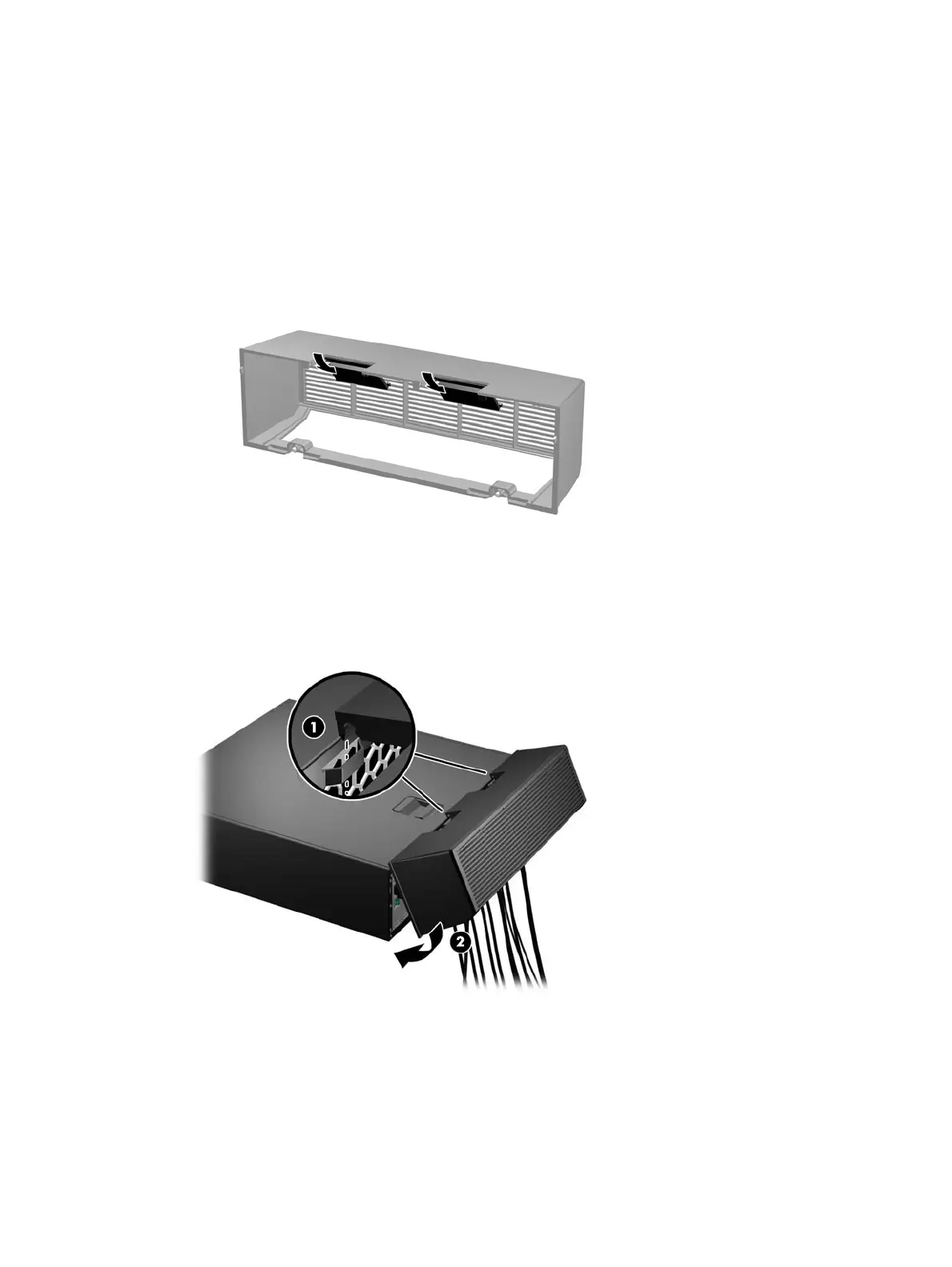

Figure 1-4 Opening the Security Lock Doors
2. Insert the tabs on top of the port cover into the slots on the rear of the computer access panel (1)
and rotate the bottom of the port cover against the rear of the computer (2).
Figure 1-5 Installing the Port Cover
Installing the Optional Port Cover 5
